archive.h File Reference

#include "mupdf/fitz/system.h"
#include "mupdf/fitz/context.h"
#include "mupdf/fitz/buffer.h"
#include "mupdf/fitz/stream.h"
#include "mupdf/fitz/tree.h"

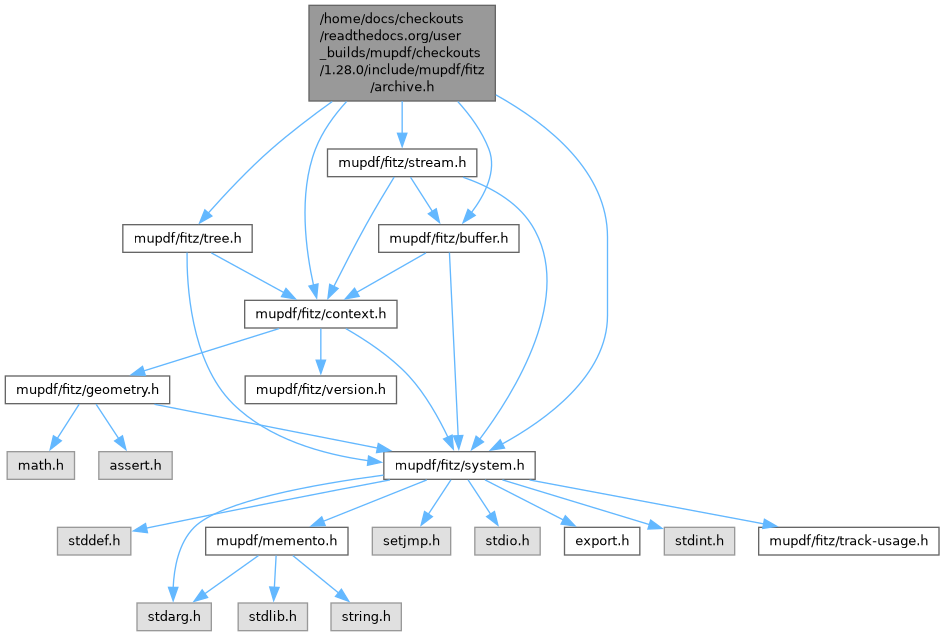

Include dependency graph for archive.h:

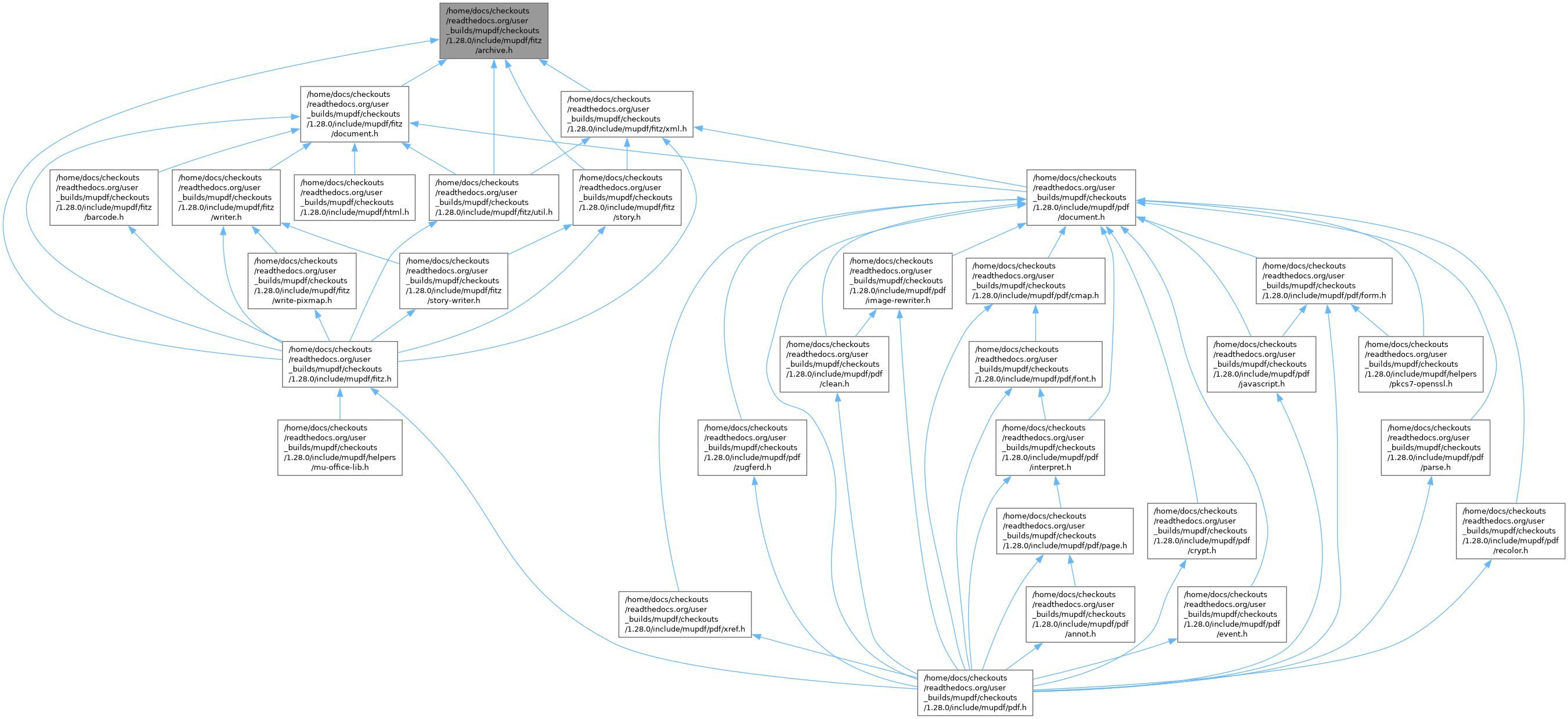

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	fz_archive_handler
struct	fz_archive

Macros
#define	fz_new_derived_archive(C, F, M)

Typedefs
typedef struct fz_archive	fz_archive
typedef struct fz_zip_writer	fz_zip_writer
typedef int	fz_recognize_archive_fn(fz_context *, fz_stream *)
typedef fz_archive *	fz_open_archive_fn(fz_context *, fz_stream *)

Functions
fz_archive *	fz_open_archive (fz_context *ctx, const char *filename)
fz_archive *	fz_open_archive_with_stream (fz_context *ctx, fz_stream *file)
fz_archive *	fz_try_open_archive_with_stream (fz_context *ctx, fz_stream *file)
fz_archive *	fz_open_directory (fz_context *ctx, const char *path)
int	fz_is_directory (fz_context *ctx, const char *path)
void	fz_drop_archive (fz_context *ctx, fz_archive *arch)
fz_archive *	fz_keep_archive (fz_context *ctx, fz_archive *arch)
const char *	fz_archive_format (fz_context *ctx, fz_archive *arch)
int	fz_count_archive_entries (fz_context *ctx, fz_archive *arch)
const char *	fz_list_archive_entry (fz_context *ctx, fz_archive *arch, int idx)
int	fz_has_archive_entry (fz_context *ctx, fz_archive *arch, const char *name)
fz_stream *	fz_open_archive_entry (fz_context *ctx, fz_archive *arch, const char *name)
fz_stream *	fz_try_open_archive_entry (fz_context *ctx, fz_archive *arch, const char *name)
fz_buffer *	fz_read_archive_entry (fz_context *ctx, fz_archive *arch, const char *name)
fz_buffer *	fz_try_read_archive_entry (fz_context *ctx, fz_archive *arch, const char *name)
int	fz_is_tar_archive (fz_context *ctx, fz_stream *file)
int	fz_is_libarchive_archive (fz_context *ctx, fz_stream *file)
int	fz_is_cfb_archive (fz_context *ctx, fz_stream *file)
fz_archive *	fz_open_tar_archive (fz_context *ctx, const char *filename)
fz_archive *	fz_open_tar_archive_with_stream (fz_context *ctx, fz_stream *file)
fz_archive *	fz_open_libarchive_archive (fz_context *ctx, const char *filename)
fz_archive *	fz_open_libarchive_archive_with_stream (fz_context *ctx, fz_stream *file)
fz_archive *	fz_open_cfb_archive (fz_context *ctx, const char *filename)
fz_archive *	fz_open_cfb_archive_with_stream (fz_context *ctx, fz_stream *file)
int	fz_is_zip_archive (fz_context *ctx, fz_stream *file)
fz_archive *	fz_open_zip_archive (fz_context *ctx, const char *path)
fz_archive *	fz_open_zip_archive_with_stream (fz_context *ctx, fz_stream *file)
fz_archive *	fz_open_zip_archive_with_memory (fz_context *ctx, const unsigned char *data, size_t size)
fz_zip_writer *	fz_new_zip_writer (fz_context *ctx, const char *filename)
fz_zip_writer *	fz_new_zip_writer_with_output (fz_context *ctx, fz_output *out)
void	fz_write_zip_entry (fz_context *ctx, fz_zip_writer *zip, const char *name, fz_buffer *buf, int compress)
void	fz_close_zip_writer (fz_context *ctx, fz_zip_writer *zip)
void	fz_drop_zip_writer (fz_context *ctx, fz_zip_writer *zip)
fz_archive *	fz_new_tree_archive (fz_context *ctx, fz_tree *tree)
void	fz_tree_archive_add_buffer (fz_context *ctx, fz_archive *arch_, const char *name, fz_buffer *buf)
void	fz_tree_archive_add_data (fz_context *ctx, fz_archive *arch_, const char *name, const void *data, size_t size)
fz_archive *	fz_new_multi_archive (fz_context *ctx)
void	fz_mount_multi_archive (fz_context *ctx, fz_archive *arch_, fz_archive *sub, const char *path)
void	fz_register_archive_handler (fz_context *ctx, const fz_archive_handler *handler)
fz_archive *	fz_new_archive_of_size (fz_context *ctx, fz_stream *file, int size)

Variables
FZ_DATA const fz_archive_handler	fz_libarchive_archive_handler

Macro Definition Documentation

fz_new_derived_archive

#define fz_new_derived_archive	(		C,
			F,
			M )

Value:

    ((M*)Memento_label(fz_new_archive_of_size(C, F, sizeof(M)), #M))

Typedef Documentation

fz_archive

typedef struct fz_archive fz_archive

fz_archive:

fz_archive provides methods for accessing "archive" files. An archive file is a conceptual entity that contains multiple files, which can be counted, enumerated, and read.

Implementations of fz_archive based upon directories, zip and tar files are included.

fz_open_archive_fn

typedef fz_archive * fz_open_archive_fn(fz_context *, fz_stream *)

fz_recognize_archive_fn

typedef int fz_recognize_archive_fn(fz_context *, fz_stream *)

fz_zip_writer

typedef struct fz_zip_writer fz_zip_writer

fz_zip_writer offers methods for creating and writing zip files. It can be seen as the reverse of the fz_archive zip implementation.

Function Documentation

fz_archive_format()

const char * fz_archive_format	(	fz_context *	ctx,
		fz_archive *	arch )

Return a pointer to a string describing the format of the archive.

The lifetime of the string is unspecified (in current implementations the string will persist until the archive is closed, but this is not guaranteed).

fz_close_zip_writer()

void fz_close_zip_writer	(	fz_context *	ctx,
		fz_zip_writer *	zip )

Close the zip file for writing.

This flushes any pending data to the file. This can throw exceptions.

fz_count_archive_entries()

int fz_count_archive_entries	(	fz_context *	ctx,
		fz_archive *	arch )

Number of entries in archive.

Will always return a value >= 0.

May throw an exception if this type of archive cannot count the entries (such as a directory).

fz_drop_archive()

void fz_drop_archive	(	fz_context *	ctx,
		fz_archive *	arch )

Drop a reference to an archive.

When the last reference is dropped, this closes and releases any memory or filehandles associated with the archive.

fz_drop_zip_writer()

void fz_drop_zip_writer	(	fz_context *	ctx,
		fz_zip_writer *	zip )

Drop the reference to the zipfile.

In common with other 'drop' methods, this will never throw an exception.

fz_has_archive_entry()

int fz_has_archive_entry	(	fz_context *	ctx,
		fz_archive *	arch,
		const char *	name )

Check if entry by given name exists.

If named entry does not exist 0 will be returned, if it does exist 1 is returned.

name: Entry name to look for, this must be an exact match to the entry name in the archive.

fz_is_cfb_archive()

int fz_is_cfb_archive	(	fz_context *	ctx,
		fz_stream *	file )

Detect if stream object is a cfb archive.

Assumes that the stream object is seekable.

fz_is_directory()

int fz_is_directory	(	fz_context *	ctx,
		const char *	path )

Determine if a given path is a directory.

In the case of the path not existing, or having no access we will return 0.

fz_is_libarchive_archive()

int fz_is_libarchive_archive	(	fz_context *	ctx,
		fz_stream *	file )

Detect if stream object is an archive supported by libarchive.

Assumes that the stream object is seekable.

fz_is_tar_archive()

int fz_is_tar_archive	(	fz_context *	ctx,
		fz_stream *	file )

fz_archive: tar implementation Detect if stream object is a tar archive.

Assumes that the stream object is seekable.

fz_is_zip_archive()

int fz_is_zip_archive	(	fz_context *	ctx,
		fz_stream *	file )

fz_archive: zip implementation Detect if stream object is a zip archive.

Assumes that the stream object is seekable.

fz_keep_archive()

fz_archive * fz_keep_archive	(	fz_context *	ctx,
		fz_archive *	arch )

Keep a reference to an archive.

fz_list_archive_entry()

const char * fz_list_archive_entry	(	fz_context *	ctx,
		fz_archive *	arch,
		int	idx )

Get listed name of entry position idx.

idx: Must be a value >= 0 < return value from fz_count_archive_entries. If not in range NULL will be returned.

May throw an exception if this type of archive cannot list the entries (such as a directory).

fz_mount_multi_archive()

void fz_mount_multi_archive	(	fz_context *	ctx,
		fz_archive *	arch_,
		fz_archive *	sub,
		const char *	path )

Add an archive to the set of archives handled by a multi archive.

If path is NULL, then the archive contents will appear at the top level, otherwise, the archives contents will appear prefixed by path.

fz_new_archive_of_size()

fz_archive * fz_new_archive_of_size	(	fz_context *	ctx,
		fz_stream *	file,
		int	size )

fz_new_multi_archive()

fz_archive * fz_new_multi_archive

(

fz_context *

ctx

)

Create a new multi archive (initially empty).

fz_new_tree_archive()

fz_archive * fz_new_tree_archive	(	fz_context *	ctx,
		fz_tree *	tree )

Create an archive that holds named buffers.

tree can either be a preformed tree with fz_buffers as values, or it can be NULL for an empty tree.

fz_new_zip_writer()

fz_zip_writer * fz_new_zip_writer	(	fz_context *	ctx,
		const char *	filename )

Create a new zip writer that writes to a given file.

Open an archive using a seekable stream object rather than opening a file or directory on disk.

fz_new_zip_writer_with_output()

fz_zip_writer * fz_new_zip_writer_with_output	(	fz_context *	ctx,
		fz_output *	out )

Create a new zip writer that writes to a given output stream.

Ownership of out passes in immediately upon calling this function. The caller should never drop the fz_output, even if this function throws an exception.

fz_open_archive()

fz_archive * fz_open_archive	(	fz_context *	ctx,
		const char *	filename )

Open a zip or tar archive

Open a file and identify its archive type based on the archive signature contained inside.

filename: a path to a file as it would be given to open(2).

fz_open_archive_entry()

fz_stream * fz_open_archive_entry	(	fz_context *	ctx,
		fz_archive *	arch,
		const char *	name )

Opens an archive entry as a stream.

name: Entry name to look for, this must be an exact match to the entry name in the archive.

Throws an exception if a matching entry cannot be found.

fz_open_archive_with_stream()

fz_archive * fz_open_archive_with_stream	(	fz_context *	ctx,
		fz_stream *	file )

Open zip or tar archive stream.

Open an archive using a seekable stream object rather than opening a file or directory on disk.

fz_open_cfb_archive()

fz_archive * fz_open_cfb_archive	(	fz_context *	ctx,
		const char *	filename )

Open a cfb file as an archive.

An exception is thrown if the file is not recognised as a cfb.

filename: a path to an archive file as it would be given to open(2).

fz_open_cfb_archive_with_stream()

fz_archive * fz_open_cfb_archive_with_stream	(	fz_context *	ctx,
		fz_stream *	file )

Open a cfb file as an archive.

Open an archive using a seekable stream object rather than opening a file or directory on disk.

An exception is thrown if the file is not recognised as a chm.

fz_open_directory()

fz_archive * fz_open_directory	(	fz_context *	ctx,
		const char *	path )

Open a directory as if it was an archive.

A special case where a directory is opened as if it was an archive.

Note that for directories it is not possible to retrieve the number of entries or list the entries. It is however possible to check if the archive has a particular entry.

path: a path to a directory as it would be given to opendir(3).

fz_open_libarchive_archive()

fz_archive * fz_open_libarchive_archive	(	fz_context *	ctx,
		const char *	filename )

Open an archive using libarchive.

An exception is thrown if the file is not supported by libarchive.

filename: a path to an archive file as it would be given to open(2).

fz_open_libarchive_archive_with_stream()

fz_archive * fz_open_libarchive_archive_with_stream	(	fz_context *	ctx,
		fz_stream *	file )

Open an archive using libarchive.

Open an archive using a seekable stream object rather than opening a file or directory on disk.

An exception is thrown if the stream is not supported by libarchive.

fz_open_tar_archive()

fz_archive * fz_open_tar_archive	(	fz_context *	ctx,
		const char *	filename )

Open a tar archive file.

An exception is thrown if the file is not a tar archive as indicated by the presence of a tar signature.

filename: a path to a tar archive file as it would be given to open(2).

fz_open_tar_archive_with_stream()

fz_archive * fz_open_tar_archive_with_stream	(	fz_context *	ctx,
		fz_stream *	file )

Open a tar archive stream.

Open an archive using a seekable stream object rather than opening a file or directory on disk.

An exception is thrown if the stream is not a tar archive as indicated by the presence of a tar signature.

fz_open_zip_archive()

fz_archive * fz_open_zip_archive	(	fz_context *	ctx,
		const char *	path )

Open a zip archive file.

An exception is thrown if the file is not a zip archive as indicated by the presence of a zip signature.

filename: a path to a zip archive file as it would be given to open(2).

fz_open_zip_archive_with_memory()

fz_archive * fz_open_zip_archive_with_memory	(	fz_context *	ctx,
		const unsigned char *	data,
		size_t	size )

Open a zip archive from static data.

fz_open_zip_archive_with_stream()

fz_archive * fz_open_zip_archive_with_stream	(	fz_context *	ctx,
		fz_stream *	file )

Open a zip archive stream.

Open an archive using a seekable stream object rather than opening a file or directory on disk.

An exception is thrown if the stream is not a zip archive as indicated by the presence of a zip signature.

fz_read_archive_entry()

fz_buffer * fz_read_archive_entry	(	fz_context *	ctx,
		fz_archive *	arch,
		const char *	name )

Reads all bytes in an archive entry into a buffer.

name: Entry name to look for, this must be an exact match to the entry name in the archive.

Throws an exception if a matching entry cannot be found.

fz_register_archive_handler()

void fz_register_archive_handler	(	fz_context *	ctx,
		const fz_archive_handler *	handler )

fz_tree_archive_add_buffer()

void fz_tree_archive_add_buffer	(	fz_context *	ctx,
		fz_archive *	arch_,
		const char *	name,
		fz_buffer *	buf )

Add a named buffer to an existing tree archive.

The tree will take a new reference to the buffer. Ownership is not transferred.

fz_tree_archive_add_data()

void fz_tree_archive_add_data	(	fz_context *	ctx,
		fz_archive *	arch_,
		const char *	name,
		const void *	data,
		size_t	size )

Add a named block of data to an existing tree archive.

The data will be copied into a buffer, and so the caller may free it as soon as this returns.

fz_try_open_archive_entry()

fz_stream * fz_try_open_archive_entry	(	fz_context *	ctx,
		fz_archive *	arch,
		const char *	name )

Opens an archive entry as a stream.

Returns NULL if a matching entry cannot be found, otherwise behaves exactly as fz_open_archive_entry.

fz_try_open_archive_with_stream()

fz_archive * fz_try_open_archive_with_stream	(	fz_context *	ctx,
		fz_stream *	file )

Open zip or tar archive stream.

Does the same as fz_open_archive_with_stream, but will not throw an error in the event of failing to recognise the format. Will still throw errors in other cases though!

fz_try_read_archive_entry()

fz_buffer * fz_try_read_archive_entry	(	fz_context *	ctx,
		fz_archive *	arch,
		const char *	name )

Reads all bytes in an archive entry into a buffer.

name: Entry name to look for, this must be an exact match to the entry name in the archive.

Returns NULL if a matching entry cannot be found. Otherwise behaves the same as fz_read_archive_entry. Exceptions may be thrown.

fz_write_zip_entry()

void fz_write_zip_entry	(	fz_context *	ctx,
		fz_zip_writer *	zip,
		const char *	name,
		fz_buffer *	buf,
		int	compress )

Given a buffer of data, (optionally) compress it, and add it to the zip file with the given name.

Variable Documentation

fz_libarchive_archive_handler

FZ_DATA const fz_archive_handler fz_libarchive_archive_handler

extern
