color.h File Reference

#include "mupdf/fitz/system.h"
#include "mupdf/fitz/context.h"
#include "mupdf/fitz/store.h"

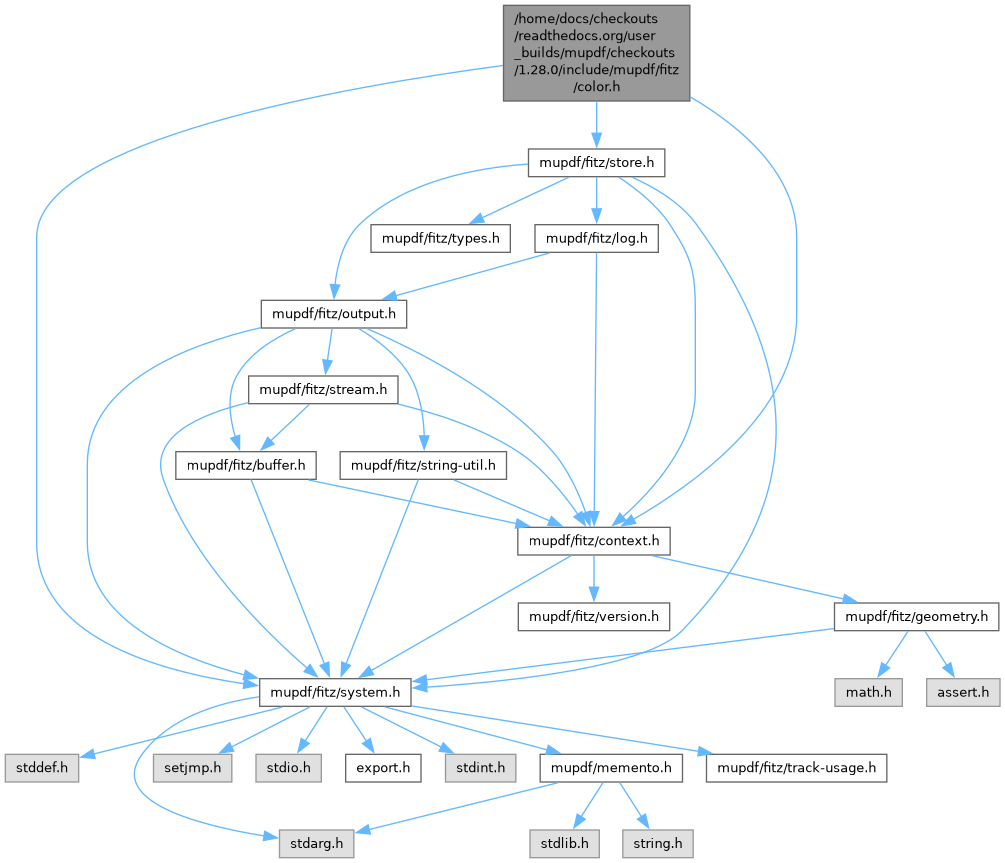

Include dependency graph for color.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	fz_color_params
struct	fz_default_colorspaces
struct	fz_colorspace

Typedefs
typedef struct fz_colorspace	fz_colorspace
typedef struct fz_pixmap	fz_pixmap

Enumerations
enum	{ FZ_RI_PERCEPTUAL , FZ_RI_RELATIVE_COLORIMETRIC , FZ_RI_SATURATION , FZ_RI_ABSOLUTE_COLORIMETRIC }
enum	{ FZ_RI_IN_SOFTMASK = 0x80 }
enum	{ FZ_MAX_COLORS = 32 }
enum	{ FZ_MAX_SAMPLES = 1 << 30 }
enum	fz_colorspace_type {   FZ_COLORSPACE_NONE , FZ_COLORSPACE_GRAY , FZ_COLORSPACE_RGB , FZ_COLORSPACE_BGR ,   FZ_COLORSPACE_CMYK , FZ_COLORSPACE_LAB , FZ_COLORSPACE_INDEXED , FZ_COLORSPACE_SEPARATION }
enum	{   FZ_COLORSPACE_IS_DEVICE = 1 , FZ_COLORSPACE_IS_ICC = 2 , FZ_COLORSPACE_HAS_CMYK = 4 , FZ_COLORSPACE_HAS_SPOTS = 8 ,   FZ_COLORSPACE_HAS_CMYK_AND_SPOTS = 4|8 }

Functions
int	fz_lookup_rendering_intent (const char *name)
const char *	fz_rendering_intent_name (int ri)
fz_colorspace *	fz_new_colorspace (fz_context *ctx, enum fz_colorspace_type type, int flags, int n, const char *name)
fz_colorspace *	fz_keep_colorspace (fz_context *ctx, fz_colorspace *colorspace)
void	fz_drop_colorspace (fz_context *ctx, fz_colorspace *colorspace)
fz_colorspace *	fz_new_indexed_colorspace (fz_context *ctx, fz_colorspace *base, int high, unsigned char *lookup)
fz_colorspace *	fz_new_icc_colorspace (fz_context *ctx, enum fz_colorspace_type type, int flags, const char *name, fz_buffer *buf)
fz_colorspace *	fz_new_cal_gray_colorspace (fz_context *ctx, float wp[3], float bp[3], float gamma)
fz_colorspace *	fz_new_cal_rgb_colorspace (fz_context *ctx, float wp[3], float bp[3], float gamma[3], float matrix[9])
enum fz_colorspace_type	fz_colorspace_type (fz_context *ctx, fz_colorspace *cs)
const char *	fz_colorspace_name (fz_context *ctx, fz_colorspace *cs)
int	fz_colorspace_n (fz_context *ctx, fz_colorspace *cs)
int	fz_colorspace_is_subtractive (fz_context *ctx, fz_colorspace *cs)
int	fz_colorspace_device_n_has_only_cmyk (fz_context *ctx, fz_colorspace *cs)
int	fz_colorspace_device_n_has_cmyk (fz_context *ctx, fz_colorspace *cs)
int	fz_colorspace_is_gray (fz_context *ctx, fz_colorspace *cs)
int	fz_colorspace_is_rgb (fz_context *ctx, fz_colorspace *cs)
int	fz_colorspace_is_cmyk (fz_context *ctx, fz_colorspace *cs)
int	fz_colorspace_is_lab (fz_context *ctx, fz_colorspace *cs)
int	fz_colorspace_is_indexed (fz_context *ctx, fz_colorspace *cs)
int	fz_colorspace_is_icc (fz_context *ctx, fz_colorspace *cs)
int	fz_colorspace_is_device_n (fz_context *ctx, fz_colorspace *cs)
int	fz_colorspace_is_device (fz_context *ctx, fz_colorspace *cs)
int	fz_colorspace_is_device_gray (fz_context *ctx, fz_colorspace *cs)
int	fz_colorspace_is_device_cmyk (fz_context *ctx, fz_colorspace *cs)
int	fz_colorspace_is_lab_icc (fz_context *ctx, fz_colorspace *cs)
void	fz_colorspace_digest (fz_context *ctx, fz_colorspace *cs, unsigned char digest[16])
int	fz_is_valid_blend_colorspace (fz_context *ctx, fz_colorspace *cs)
fz_colorspace *	fz_base_colorspace (fz_context *ctx, fz_colorspace *cs)
fz_colorspace *	fz_device_gray (fz_context *ctx)
fz_colorspace *	fz_device_rgb (fz_context *ctx)
fz_colorspace *	fz_device_bgr (fz_context *ctx)
fz_colorspace *	fz_device_cmyk (fz_context *ctx)
fz_colorspace *	fz_device_lab (fz_context *ctx)
void	fz_colorspace_name_colorant (fz_context *ctx, fz_colorspace *cs, int n, const char *name)
const char *	fz_colorspace_colorant (fz_context *ctx, fz_colorspace *cs, int n)
void	fz_clamp_color (fz_context *ctx, fz_colorspace *cs, const float *in, float *out)
void	fz_convert_color (fz_context *ctx, fz_colorspace *ss, const float *sv, fz_colorspace *ds, float *dv, fz_colorspace *is, fz_color_params params)
fz_default_colorspaces *	fz_new_default_colorspaces (fz_context *ctx)
fz_default_colorspaces *	fz_keep_default_colorspaces (fz_context *ctx, fz_default_colorspaces *default_cs)
void	fz_drop_default_colorspaces (fz_context *ctx, fz_default_colorspaces *default_cs)
fz_default_colorspaces *	fz_clone_default_colorspaces (fz_context *ctx, fz_default_colorspaces *base)
fz_colorspace *	fz_default_gray (fz_context *ctx, const fz_default_colorspaces *default_cs)
fz_colorspace *	fz_default_rgb (fz_context *ctx, const fz_default_colorspaces *default_cs)
fz_colorspace *	fz_default_cmyk (fz_context *ctx, const fz_default_colorspaces *default_cs)
fz_colorspace *	fz_default_output_intent (fz_context *ctx, const fz_default_colorspaces *default_cs)
void	fz_set_default_gray (fz_context *ctx, fz_default_colorspaces *default_cs, fz_colorspace *cs)
void	fz_set_default_rgb (fz_context *ctx, fz_default_colorspaces *default_cs, fz_colorspace *cs)
void	fz_set_default_cmyk (fz_context *ctx, fz_default_colorspaces *default_cs, fz_colorspace *cs)
void	fz_set_default_output_intent (fz_context *ctx, fz_default_colorspaces *default_cs, fz_colorspace *cs)
void	fz_drop_colorspace_imp (fz_context *ctx, fz_storable *cs_)

Variables
FZ_DATA const fz_color_params	fz_default_color_params

Typedef Documentation

fz_colorspace

typedef struct fz_colorspace fz_colorspace

Describes a given colorspace.

fz_pixmap

typedef struct fz_pixmap fz_pixmap

Pixmaps represent a set of pixels for a 2 dimensional region of a plane. Each pixel has n components per pixel. The components are in the order process-components, spot-colors, alpha, where there can be 0 of any of those types. The data is in premultiplied alpha when rendering, but non-premultiplied for colorspace conversions and rescaling.

Enumeration Type Documentation

anonymous enum

anonymous enum

The maximum number of colorants available in any given color/colorspace (not including alpha).

Changing this value will alter the amount of memory being used (both stack and heap space), but not hugely. Speed should (largely) be determined by the number of colors actually used.

Enumerator
FZ_MAX_COLORS

anonymous enum

anonymous enum

Enumerator
FZ_COLORSPACE_IS_DEVICE
FZ_COLORSPACE_IS_ICC
FZ_COLORSPACE_HAS_CMYK
FZ_COLORSPACE_HAS_SPOTS
FZ_COLORSPACE_HAS_CMYK_AND_SPOTS

anonymous enum

anonymous enum

Enumerator
FZ_RI_PERCEPTUAL
FZ_RI_RELATIVE_COLORIMETRIC
FZ_RI_SATURATION
FZ_RI_ABSOLUTE_COLORIMETRIC

anonymous enum

anonymous enum

Enumerator
FZ_RI_IN_SOFTMASK

anonymous enum

anonymous enum

The maximum number of images samples allowed in any given image.

This limit is checked when allocating images.

Enumerator
FZ_MAX_SAMPLES

fz_colorspace_type

enum fz_colorspace_type

Enumerator
FZ_COLORSPACE_NONE
FZ_COLORSPACE_GRAY
FZ_COLORSPACE_RGB
FZ_COLORSPACE_BGR
FZ_COLORSPACE_CMYK
FZ_COLORSPACE_LAB
FZ_COLORSPACE_INDEXED
FZ_COLORSPACE_SEPARATION

Function Documentation

fz_base_colorspace()

fz_colorspace * fz_base_colorspace	(	fz_context *	ctx,
		fz_colorspace *	cs )

Get the 'base' colorspace for a colorspace.

For indexed colorspaces, this is the colorspace the index decodes into. For all other colorspaces, it is the colorspace itself.

The returned colorspace is 'borrowed' (i.e. no additional references are taken or dropped).

fz_clamp_color()

void fz_clamp_color	(	fz_context *	ctx,
		fz_colorspace *	cs,
		const float *	in,
		float *	out )

Clamp the samples in a color to the correct ranges for a given colorspace.

fz_clone_default_colorspaces()

fz_default_colorspaces * fz_clone_default_colorspaces	(	fz_context *	ctx,
		fz_default_colorspaces *	base )

Returns a reference to a newly cloned default colorspaces structure.

The new clone may safely be altered without fear of race conditions as the caller is the only reference holder.

fz_colorspace_colorant()

const char * fz_colorspace_colorant	(	fz_context *	ctx,
		fz_colorspace *	cs,
		int	n )

Retrieve a the name for a colorant.

Returns a pointer with the same lifespan as the colorspace.

fz_colorspace_device_n_has_cmyk()

int fz_colorspace_device_n_has_cmyk	(	fz_context *	ctx,
		fz_colorspace *	cs )

True if DeviceN color space has cyan magenta yellow or black as one of its colorants.

fz_colorspace_device_n_has_only_cmyk()

int fz_colorspace_device_n_has_only_cmyk	(	fz_context *	ctx,
		fz_colorspace *	cs )

True if DeviceN color space has only colorants from the CMYK set.

fz_colorspace_digest()

void fz_colorspace_digest	(	fz_context *	ctx,
		fz_colorspace *	cs,
		unsigned char	digest[16] )

Get checksum of underlying ICC profile.

fz_colorspace_is_cmyk()

int fz_colorspace_is_cmyk	(	fz_context *	ctx,
		fz_colorspace *	cs )

fz_colorspace_is_device()

int fz_colorspace_is_device	(	fz_context *	ctx,
		fz_colorspace *	cs )

fz_colorspace_is_device_cmyk()

int fz_colorspace_is_device_cmyk	(	fz_context *	ctx,
		fz_colorspace *	cs )

fz_colorspace_is_device_gray()

int fz_colorspace_is_device_gray	(	fz_context *	ctx,
		fz_colorspace *	cs )

fz_colorspace_is_device_n()

int fz_colorspace_is_device_n	(	fz_context *	ctx,
		fz_colorspace *	cs )

fz_colorspace_is_gray()

int fz_colorspace_is_gray	(	fz_context *	ctx,
		fz_colorspace *	cs )

Tests for particular types of colorspaces

fz_colorspace_is_icc()

int fz_colorspace_is_icc	(	fz_context *	ctx,
		fz_colorspace *	cs )

fz_colorspace_is_indexed()

int fz_colorspace_is_indexed	(	fz_context *	ctx,
		fz_colorspace *	cs )

fz_colorspace_is_lab()

int fz_colorspace_is_lab	(	fz_context *	ctx,
		fz_colorspace *	cs )

fz_colorspace_is_lab_icc()

int fz_colorspace_is_lab_icc	(	fz_context *	ctx,
		fz_colorspace *	cs )

fz_colorspace_is_rgb()

int fz_colorspace_is_rgb	(	fz_context *	ctx,
		fz_colorspace *	cs )

fz_colorspace_is_subtractive()

int fz_colorspace_is_subtractive	(	fz_context *	ctx,
		fz_colorspace *	cs )

True for CMYK, Separation and DeviceN colorspaces.

fz_colorspace_n()

int fz_colorspace_n	(	fz_context *	ctx,
		fz_colorspace *	cs )

Query the number of colorants in a colorspace.

fz_colorspace_name()

const char * fz_colorspace_name	(	fz_context *	ctx,
		fz_colorspace *	cs )

Query the name of a colorspace.

The returned string has the same lifespan as the colorspace does. Caller should not free it.

fz_colorspace_name_colorant()

void fz_colorspace_name_colorant	(	fz_context *	ctx,
		fz_colorspace *	cs,
		int	n,
		const char *	name )

Assign a name for a given colorant in a colorspace.

Used while initially setting up a colorspace. The string is copied into local storage, so need not be retained by the caller.

fz_colorspace_type()

enum fz_colorspace_type fz_colorspace_type	(	fz_context *	ctx,
		fz_colorspace *	cs )

Query the type of colorspace.

fz_convert_color()

void fz_convert_color	(	fz_context *	ctx,
		fz_colorspace *	ss,
		const float *	sv,
		fz_colorspace *	ds,
		float *	dv,
		fz_colorspace *	is,
		fz_color_params	params )

Convert color values sv from colorspace ss into colorvalues dv for colorspace ds, via an optional intervening space is, respecting the given color_params.

fz_default_cmyk()

fz_colorspace * fz_default_cmyk	(	fz_context *	ctx,
		const fz_default_colorspaces *	default_cs )

fz_default_gray()

fz_colorspace * fz_default_gray	(	fz_context *	ctx,
		const fz_default_colorspaces *	default_cs )

Retrieve default colorspaces (typically page local).

If default_cs is non NULL, the default is retrieved from there, otherwise the global default is retrieved.

These return borrowed references that should not be dropped, unless they are kept first.

fz_default_output_intent()

fz_colorspace * fz_default_output_intent	(	fz_context *	ctx,
		const fz_default_colorspaces *	default_cs )

fz_default_rgb()

fz_colorspace * fz_default_rgb	(	fz_context *	ctx,
		const fz_default_colorspaces *	default_cs )

fz_device_bgr()

fz_colorspace * fz_device_bgr

(

fz_context *

ctx

)

fz_device_cmyk()

fz_colorspace * fz_device_cmyk

(

fz_context *

ctx

)

fz_device_gray()

fz_colorspace * fz_device_gray

(

fz_context *

ctx

)

Retrieve global default colorspaces.

These return borrowed references that should not be dropped, unless they are kept first.

fz_device_lab()

fz_colorspace * fz_device_lab

(

fz_context *

ctx

)

fz_device_rgb()

fz_colorspace * fz_device_rgb

(

fz_context *

ctx

)

fz_drop_colorspace()

void fz_drop_colorspace	(	fz_context *	ctx,
		fz_colorspace *	colorspace )

Drops a reference to the colorspace.

When the reference count reaches zero, the colorspace is destroyed.

fz_drop_colorspace_imp()

void fz_drop_colorspace_imp	(	fz_context *	ctx,
		fz_storable *	cs_ )

fz_drop_default_colorspaces()

void fz_drop_default_colorspaces	(	fz_context *	ctx,
		fz_default_colorspaces *	default_cs )

Drop a reference to the default colorspaces structure. When the reference count reaches 0, the references it holds internally to the underlying colorspaces will be dropped, and the structure will be destroyed.

Never throws exceptions.

fz_is_valid_blend_colorspace()

int fz_is_valid_blend_colorspace	(	fz_context *	ctx,
		fz_colorspace *	cs )

Check to see that a colorspace is appropriate to be used as a blending space (i.e. only grey, rgb or cmyk).

fz_keep_colorspace()

fz_colorspace * fz_keep_colorspace	(	fz_context *	ctx,
		fz_colorspace *	colorspace )

Increment the reference count for the colorspace.

Returns the same pointer. Never throws an exception.

fz_keep_default_colorspaces()

fz_default_colorspaces * fz_keep_default_colorspaces	(	fz_context *	ctx,
		fz_default_colorspaces *	default_cs )

Keep an additional reference to the default colorspaces structure.

Never throws exceptions.

fz_lookup_rendering_intent()

int fz_lookup_rendering_intent

(

const char *

name

)

Map from (case sensitive) rendering intent string to enumeration value.

fz_new_cal_gray_colorspace()

fz_colorspace * fz_new_cal_gray_colorspace	(	fz_context *	ctx,
		float	wp[3],
		float	bp[3],
		float	gamma )

Create a calibrated gray colorspace.

The returned reference should be dropped when it is finished with.

Colorspaces are immutable once created.

fz_new_cal_rgb_colorspace()

fz_colorspace * fz_new_cal_rgb_colorspace	(	fz_context *	ctx,
		float	wp[3],
		float	bp[3],
		float	gamma[3],
		float	matrix[9] )

Create a calibrated rgb colorspace.

The returned reference should be dropped when it is finished with.

Colorspaces are immutable once created.

fz_new_colorspace()

fz_colorspace * fz_new_colorspace	(	fz_context *	ctx,
		enum fz_colorspace_type	type,
		int	flags,
		int	n,
		const char *	name )

Creates a new colorspace instance and returns a reference.

No internal checking is done that the colorspace type (e.g. CMYK) matches with the flags (e.g. FZ_COLORSPACE_HAS_CMYK) or colorant count (n) or name.

The reference should be dropped when it is finished with.

Colorspaces are immutable once created (with the exception of setting up colorant names for separation spaces).

fz_new_default_colorspaces()

fz_default_colorspaces * fz_new_default_colorspaces

(

fz_context *

ctx

)

Create a new default colorspace structure with values inherited from the context, and return a reference to it.

These can be overridden using fz_set_default_xxxx.

These should not be overridden while more than one caller has the reference for fear of race conditions.

The caller should drop this reference once finished with it.

fz_new_icc_colorspace()

fz_colorspace * fz_new_icc_colorspace	(	fz_context *	ctx,
		enum fz_colorspace_type	type,
		int	flags,
		const char *	name,
		fz_buffer *	buf )

Create a colorspace from an ICC profile supplied in buf.

Limited checking is done to ensure that the colorspace type is appropriate for the supplied ICC profile.

An additional reference is taken to buf, which will be dropped on destruction. Ownership is NOT passed in.

The returned reference should be dropped when it is finished with.

Colorspaces are immutable once created.

fz_new_indexed_colorspace()

fz_colorspace * fz_new_indexed_colorspace	(	fz_context *	ctx,
		fz_colorspace *	base,
		int	high,
		unsigned char *	lookup )

Create an indexed colorspace.

The supplied lookup table is high palette entries long. Each entry is n bytes long, where n is given by the number of colorants in the base colorspace, one byte per colorant.

Ownership of lookup is passed it; it will be freed on destruction, so must be heap allocated.

The colorspace will keep an additional reference to the base colorspace that will be dropped on destruction.

The returned reference should be dropped when it is finished with.

Colorspaces are immutable once created.

fz_rendering_intent_name()

const char * fz_rendering_intent_name

(

int

ri

)

Map from enumerated rendering intent to string.

The returned string is static and therefore must not be freed.

fz_set_default_cmyk()

void fz_set_default_cmyk	(	fz_context *	ctx,
		fz_default_colorspaces *	default_cs,
		fz_colorspace *	cs )

fz_set_default_gray()

void fz_set_default_gray	(	fz_context *	ctx,
		fz_default_colorspaces *	default_cs,
		fz_colorspace *	cs )

Set new defaults within the default colorspace structure.

New references are taken to the new default, and references to the old defaults dropped.

Never throws exceptions.

fz_set_default_output_intent()

void fz_set_default_output_intent	(	fz_context *	ctx,
		fz_default_colorspaces *	default_cs,
		fz_colorspace *	cs )

fz_set_default_rgb()

void fz_set_default_rgb	(	fz_context *	ctx,
		fz_default_colorspaces *	default_cs,
		fz_colorspace *	cs )

Variable Documentation

fz_default_color_params

FZ_DATA const fz_color_params fz_default_color_params

extern
