display-list.h File Reference

#include "mupdf/fitz/system.h"
#include "mupdf/fitz/context.h"
#include "mupdf/fitz/geometry.h"
#include "mupdf/fitz/device.h"

Include dependency graph for display-list.h:

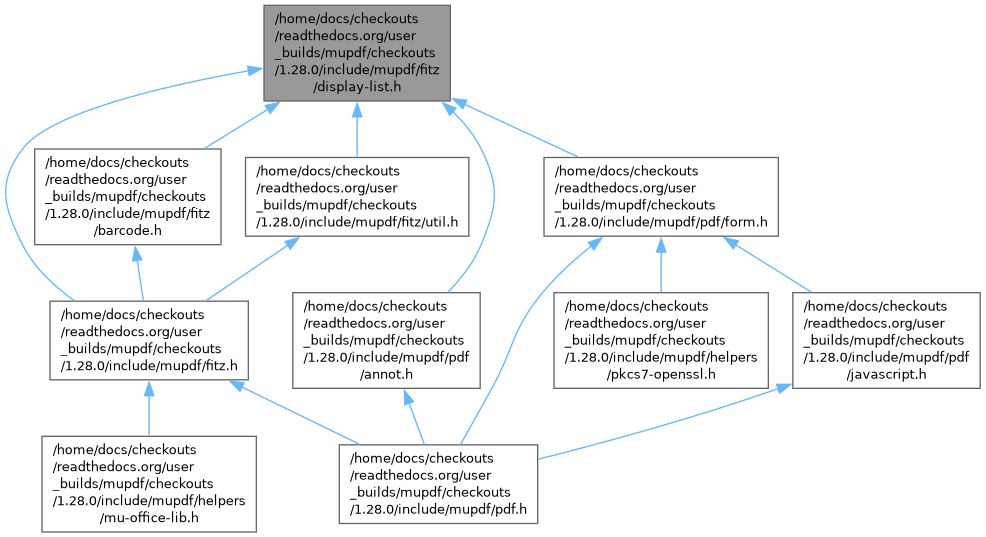

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef struct fz_display_list	fz_display_list

Functions
fz_display_list *	fz_new_display_list (fz_context *ctx, fz_rect mediabox)
fz_device *	fz_new_list_device (fz_context *ctx, fz_display_list *list)
void	fz_run_display_list (fz_context *ctx, fz_display_list *list, fz_device *dev, fz_matrix ctm, fz_rect scissor, fz_cookie *cookie)
fz_display_list *	fz_keep_display_list (fz_context *ctx, fz_display_list *list)
void	fz_drop_display_list (fz_context *ctx, fz_display_list *list)
fz_rect	fz_bound_display_list (fz_context *ctx, fz_display_list *list)
fz_image *	fz_new_image_from_display_list (fz_context *ctx, float w, float h, fz_display_list *list)
int	fz_display_list_is_empty (fz_context *ctx, const fz_display_list *list)

Typedef Documentation

fz_display_list

typedef struct fz_display_list fz_display_list

Display list device – record and play back device commands. fz_display_list is a list containing drawing commands (text, images, etc.). The intent is two-fold: as a caching-mechanism to reduce parsing of a page, and to be used as a data structure in multi-threading where one thread parses the page and another renders pages.

Create a display list with fz_new_display_list, hand it over to fz_new_list_device to have it populated, and later replay the list (once or many times) by calling fz_run_display_list. When the list is no longer needed drop it with fz_drop_display_list.

Function Documentation

fz_bound_display_list()

fz_rect fz_bound_display_list	(	fz_context *	ctx,
		fz_display_list *	list )

Return the bounding box of the page recorded in a display list.

fz_display_list_is_empty()

int fz_display_list_is_empty	(	fz_context *	ctx,
		const fz_display_list *	list )

Check for a display list being empty

list: The list to check.

Returns true if empty, false otherwise.

fz_drop_display_list()

void fz_drop_display_list	(	fz_context *	ctx,
		fz_display_list *	list )

Decrement the reference count for a display list. When the reference count reaches zero, all the references in the display list itself are dropped, and the display list is freed.

Never throws exceptions.

fz_keep_display_list()

fz_display_list * fz_keep_display_list	(	fz_context *	ctx,
		fz_display_list *	list )

Increment the reference count for a display list. Returns the same pointer.

Never throws exceptions.

fz_new_display_list()

fz_display_list * fz_new_display_list	(	fz_context *	ctx,
		fz_rect	mediabox )

Create an empty display list.

A display list contains drawing commands (text, images, etc.). Use fz_new_list_device for populating the list.

mediabox: Bounds of the page (in points) represented by the display list.

fz_new_image_from_display_list()

fz_image * fz_new_image_from_display_list	(	fz_context *	ctx,
		float	w,
		float	h,
		fz_display_list *	list )

Create a new image from a display list.

w, h: The conceptual width/height of the image.

transform: The matrix that needs to be applied to the given list to make it render to the unit square.

list: The display list.

fz_new_list_device()

fz_device * fz_new_list_device	(	fz_context *	ctx,
		fz_display_list *	list )

Create a rendering device for a display list.

When the device is rendering a page it will populate the display list with drawing commands (text, images, etc.). The display list can later be reused to render a page many times without having to re-interpret the page from the document file for each rendering. Once the device is no longer needed, free it with fz_drop_device.

list: A display list that the list device takes a reference to.

fz_run_display_list()

void fz_run_display_list	(	fz_context *	ctx,
		fz_display_list *	list,
		fz_device *	dev,
		fz_matrix	ctm,
		fz_rect	scissor,
		fz_cookie *	cookie )

(Re)-run a display list through a device.

list: A display list, created by fz_new_display_list and populated with objects from a page by running fz_run_page on a device obtained from fz_new_list_device.

ctm: Transform to apply to display list contents. May include for example scaling and rotation, see fz_scale, fz_rotate and fz_concat. Set to fz_identity if no transformation is desired.

scissor: Only the part of the contents of the display list visible within this area will be considered when the list is run through the device. This does not imply for tile objects contained in the display list.

cookie: Communication mechanism between caller and library running the page. Intended for multi-threaded applications, while single-threaded applications set cookie to NULL. The caller may abort an ongoing page run. Cookie also communicates progress information back to the caller. The fields inside cookie are continually updated while the page is being run.
