link.h File Reference

#include "mupdf/fitz/system.h"
#include "mupdf/fitz/context.h"
#include "mupdf/fitz/geometry.h"
#include "mupdf/fitz/types.h"

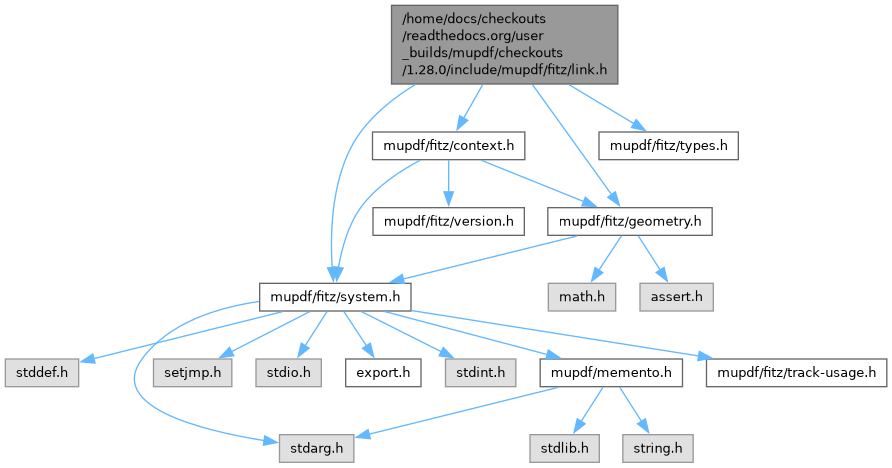

Include dependency graph for link.h:

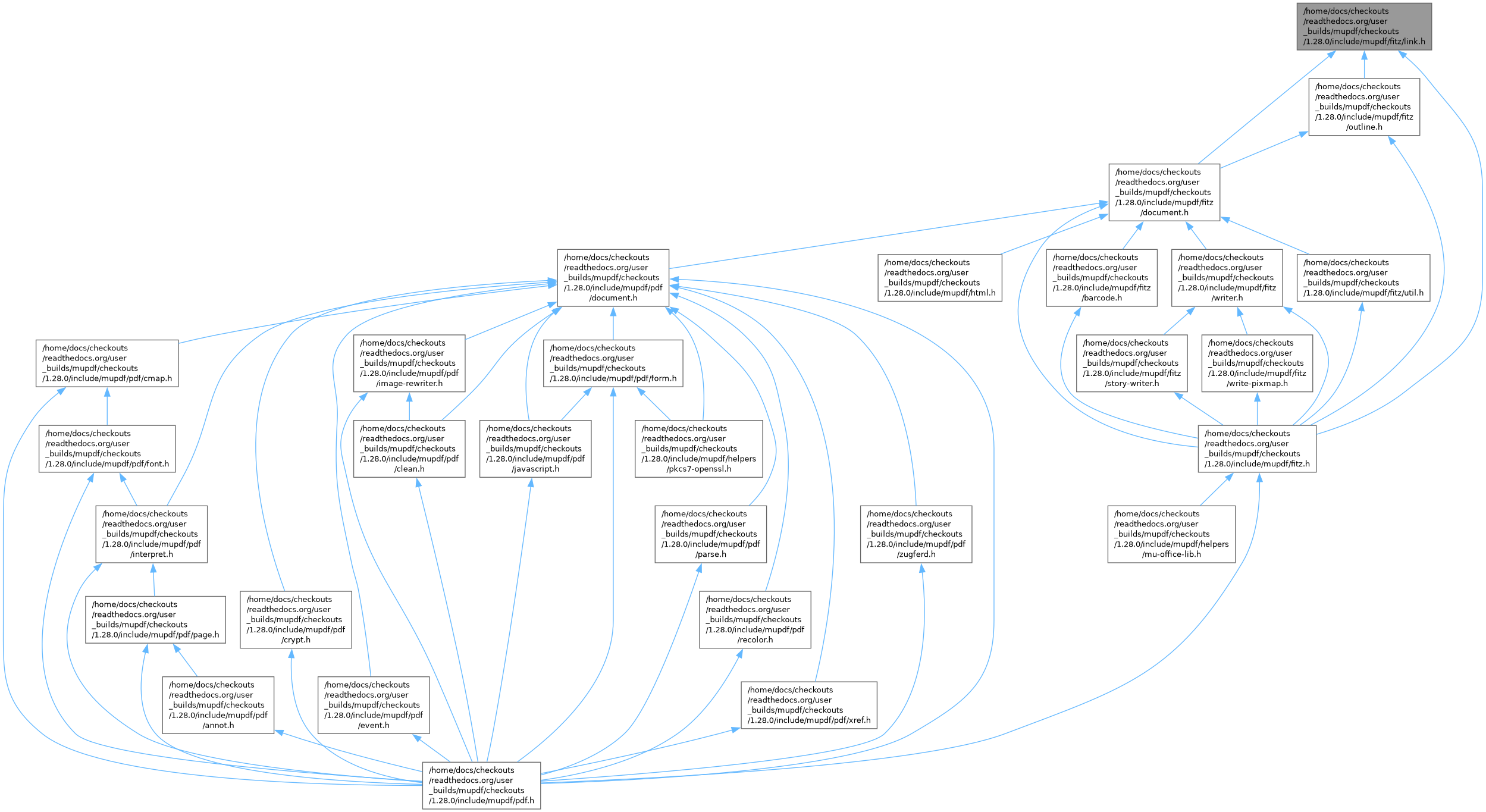

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	fz_link
struct	fz_link_dest

Macros
#define	fz_new_derived_link(CTX, TYPE, RECT, URI)

Typedefs
typedef struct fz_link	fz_link
typedef void	fz_link_set_rect_fn(fz_context *ctx, fz_link *link, fz_rect rect)
typedef void	fz_link_set_uri_fn(fz_context *ctx, fz_link *link, const char *uri)
typedef void	fz_link_drop_link_fn(fz_context *ctx, fz_link *link)

Enumerations
enum	fz_link_dest_type {   FZ_LINK_DEST_FIT , FZ_LINK_DEST_FIT_B , FZ_LINK_DEST_FIT_H , FZ_LINK_DEST_FIT_BH ,   FZ_LINK_DEST_FIT_V , FZ_LINK_DEST_FIT_BV , FZ_LINK_DEST_FIT_R , FZ_LINK_DEST_XYZ }

Functions
fz_link_dest	fz_make_link_dest_none (void)
fz_link_dest	fz_make_link_dest_xyz (int chapter, int page, float x, float y, float z)
fz_link *	fz_new_link_of_size (fz_context *ctx, int size, fz_rect rect, const char *uri)
fz_link *	fz_keep_link (fz_context *ctx, fz_link *link)
void	fz_drop_link (fz_context *ctx, fz_link *link)
int	fz_is_external_link (fz_context *ctx, const char *uri)
void	fz_set_link_rect (fz_context *ctx, fz_link *link, fz_rect rect)
void	fz_set_link_uri (fz_context *ctx, fz_link *link, const char *uri)

Macro Definition Documentation

fz_new_derived_link

#define fz_new_derived_link	(		CTX,
			TYPE,
			RECT,
			URI )

Value:

       ((TYPE *)Memento_label(fz_new_link_of_size(CTX,sizeof(TYPE),RECT,URI),#TYPE))

Typedef Documentation

fz_link

typedef struct fz_link fz_link

fz_link is a list of interactive links on a page.

There is no relation between the order of the links in the list and the order they appear on the page. The list of links for a given page can be obtained from fz_load_links.

A link is reference counted. Dropping a reference to a link is done by calling fz_drop_link.

rect: The hot zone. The area that can be clicked in untransformed coordinates.

uri: Link destinations come in two forms: internal and external. Internal links refer to other pages in the same document. External links are URLs to other documents.

next: A pointer to the next link on the same page.

fz_link_drop_link_fn

typedef void fz_link_drop_link_fn(fz_context *ctx, fz_link *link)

fz_link_set_rect_fn

typedef void fz_link_set_rect_fn(fz_context *ctx, fz_link *link, fz_rect rect)

fz_link_set_uri_fn

typedef void fz_link_set_uri_fn(fz_context *ctx, fz_link *link, const char *uri)

Enumeration Type Documentation

fz_link_dest_type

enum fz_link_dest_type

Enumerator
FZ_LINK_DEST_FIT
FZ_LINK_DEST_FIT_B
FZ_LINK_DEST_FIT_H
FZ_LINK_DEST_FIT_BH
FZ_LINK_DEST_FIT_V
FZ_LINK_DEST_FIT_BV
FZ_LINK_DEST_FIT_R
FZ_LINK_DEST_XYZ

Function Documentation

fz_drop_link()

void fz_drop_link	(	fz_context *	ctx,
		fz_link *	link )

Decrement the reference count for a link. When the reference count reaches zero, the link is destroyed.

When a link is freed, the reference for any linked link (next) is dropped too, thus an entire linked list of fz_link's can be freed by just dropping the head.

fz_is_external_link()

int fz_is_external_link	(	fz_context *	ctx,
		const char *	uri )

Query whether a link is external to a document (determined by uri containing a ':', intended to match with '://' which separates the scheme from the scheme specific parts in URIs).

fz_keep_link()

fz_link * fz_keep_link	(	fz_context *	ctx,
		fz_link *	link )

Increment the reference count for a link. The same pointer is returned.

Never throws exceptions.

fz_make_link_dest_none()

fz_link_dest fz_make_link_dest_none

(

void

)

fz_make_link_dest_xyz()

fz_link_dest fz_make_link_dest_xyz	(	int	chapter,
		int	page,
		float	x,
		float	y,
		float	z )

fz_new_link_of_size()

fz_link * fz_new_link_of_size	(	fz_context *	ctx,
		int	size,
		fz_rect	rect,
		const char *	uri )

Create a new link record.

next is set to NULL with the expectation that the caller will handle the linked list setup. Internal function.

Different document types will be implemented by deriving from fz_link. This macro allocates such derived structures, and initialises the base sections.

fz_set_link_rect()

void fz_set_link_rect	(	fz_context *	ctx,
		fz_link *	link,
		fz_rect	rect )

fz_set_link_uri()

void fz_set_link_uri	(	fz_context *	ctx,
		fz_link *	link,
		const char *	uri )
