output-svg.h File Reference

#include "mupdf/fitz/system.h"
#include "mupdf/fitz/context.h"
#include "mupdf/fitz/device.h"
#include "mupdf/fitz/output.h"

Include dependency graph for output-svg.h:

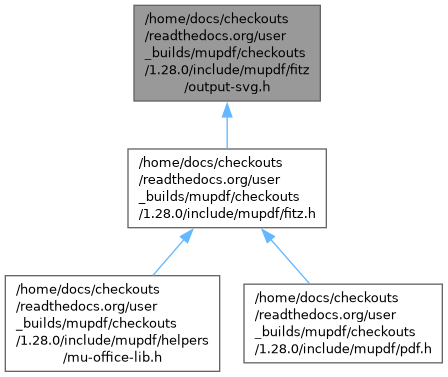

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	fz_svg_device_options

Typedefs
typedef struct fz_svg_device_options	fz_svg_device_options

Enumerations
enum	{ FZ_SVG_TEXT_AS_PATH = 0 , FZ_SVG_TEXT_AS_TEXT = 1 }

Functions
void	fz_init_svg_device_options (fz_context *ctx, fz_svg_device_options *opts)
void	fz_parse_svg_device_options (fz_context *ctx, fz_svg_device_options *opts, const char *args)
void	fz_apply_svg_device_options (fz_context *ctx, fz_svg_device_options *opts, fz_options *options)
fz_device *	fz_new_svg_device_with_options (fz_context *ctx, fz_output *out, float page_width, float page_height, fz_svg_device_options *opts)
fz_device *	fz_new_svg_device (fz_context *ctx, fz_output *out, float page_width, float page_height, int text_format, int reuse_images)
fz_device *	fz_new_svg_device_with_id (fz_context *ctx, fz_output *out, float page_width, float page_height, int text_format, int reuse_images, int *id)

Typedef Documentation

fz_svg_device_options

typedef struct fz_svg_device_options fz_svg_device_options

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
FZ_SVG_TEXT_AS_PATH
FZ_SVG_TEXT_AS_TEXT

Function Documentation

fz_apply_svg_device_options()

void fz_apply_svg_device_options	(	fz_context *	ctx,
		fz_svg_device_options *	opts,
		fz_options *	options )

fz_init_svg_device_options()

void fz_init_svg_device_options	(	fz_context *	ctx,
		fz_svg_device_options *	opts )

fz_new_svg_device()

fz_device * fz_new_svg_device	(	fz_context *	ctx,
		fz_output *	out,
		float	page_width,
		float	page_height,
		int	text_format,
		int	reuse_images )

Create a device that outputs (single page) SVG files to the given output stream.

Equivalent to fz_new_svg_device_with_id passing id = NULL.

fz_new_svg_device_with_id()

fz_device * fz_new_svg_device_with_id	(	fz_context *	ctx,
		fz_output *	out,
		float	page_width,
		float	page_height,
		int	text_format,
		int	reuse_images,
		int *	id )

Create a device that outputs (single page) SVG files to the given output stream.

output: The output stream to send the constructed SVG page to.

page_width, page_height: The page dimensions to use (in points).

text_format: How to emit text. One of the following values: FZ_SVG_TEXT_AS_TEXT: As <text> elements with possible layout errors and mismatching fonts. FZ_SVG_TEXT_AS_PATH: As <path> elements with exact visual appearance.

reuse_images: Share image resources using <symbol> definitions.

resolution: Resolution to use when rasterizing shadings (and such) to images.

id: ID parameter to keep generated IDs unique across SVG files.

fz_new_svg_device_with_options()

fz_device * fz_new_svg_device_with_options	(	fz_context *	ctx,
		fz_output *	out,
		float	page_width,
		float	page_height,
		fz_svg_device_options *	opts )

fz_parse_svg_device_options()

void fz_parse_svg_device_options	(	fz_context *	ctx,
		fz_svg_device_options *	opts,
		const char *	args )
