separation.h File Reference

#include "mupdf/fitz/system.h"
#include "mupdf/fitz/context.h"
#include "mupdf/fitz/color.h"

Include dependency graph for separation.h:

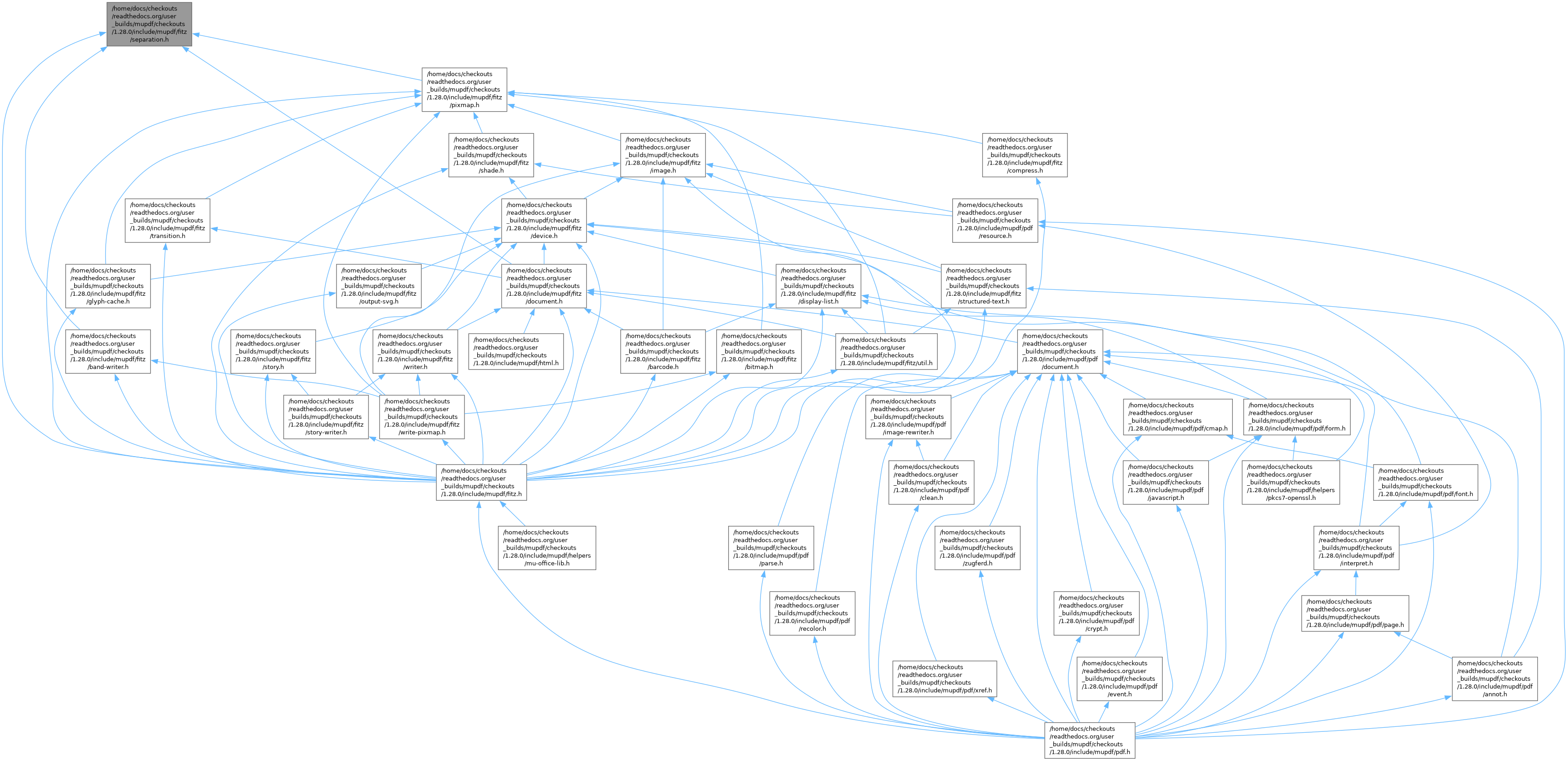

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef struct fz_separations	fz_separations

Enumerations
enum	{ FZ_MAX_SEPARATIONS = 64 }
enum	fz_separation_behavior { FZ_SEPARATION_COMPOSITE = 0 , FZ_SEPARATION_SPOT = 1 , FZ_SEPARATION_DISABLED = 2 }

Functions
fz_separations *	fz_new_separations (fz_context *ctx, int controllable)
fz_separations *	fz_keep_separations (fz_context *ctx, fz_separations *sep)
void	fz_drop_separations (fz_context *ctx, fz_separations *sep)
void	fz_add_separation (fz_context *ctx, fz_separations *sep, const char *name, fz_colorspace *cs, int cs_channel)
void	fz_add_separation_equivalents (fz_context *ctx, fz_separations *sep, uint32_t rgba, uint32_t cmyk, const char *name)
void	fz_set_separation_behavior (fz_context *ctx, fz_separations *sep, int separation, fz_separation_behavior behavior)
fz_separation_behavior	fz_separation_current_behavior (fz_context *ctx, const fz_separations *sep, int separation)
const char *	fz_separation_name (fz_context *ctx, const fz_separations *sep, int separation)
int	fz_count_separations (fz_context *ctx, const fz_separations *sep)
int	fz_count_active_separations (fz_context *ctx, const fz_separations *seps)
int	fz_compare_separations (fz_context *ctx, const fz_separations *sep1, const fz_separations *sep2)
fz_separations *	fz_clone_separations_for_overprint (fz_context *ctx, fz_separations *seps)
void	fz_convert_separation_colors (fz_context *ctx, fz_colorspace *src_cs, const float *src_color, fz_separations *dst_seps, fz_colorspace *dst_cs, float *dst_color, fz_color_params color_params)
void	fz_separation_equivalent (fz_context *ctx, const fz_separations *seps, int idx, fz_colorspace *dst_cs, float *dst_color, fz_colorspace *prf, fz_color_params color_params)

Typedef Documentation

fz_separations

typedef struct fz_separations fz_separations

Enumeration Type Documentation

anonymous enum

anonymous enum

A fz_separation structure holds details of a set of separations (such as might be used on within a page of the document).

The app might control the separations by enabling/disabling them, and subsequent renders would take this into account.

Enumerator
FZ_MAX_SEPARATIONS

fz_separation_behavior

enum fz_separation_behavior

Enumerator
FZ_SEPARATION_COMPOSITE
FZ_SEPARATION_SPOT
FZ_SEPARATION_DISABLED

Function Documentation

fz_add_separation()

void fz_add_separation	(	fz_context *	ctx,
		fz_separations *	sep,
		const char *	name,
		fz_colorspace *	cs,
		int	cs_channel )

Add a separation (null terminated name, colorspace)

fz_add_separation_equivalents()

void fz_add_separation_equivalents	(	fz_context *	ctx,
		fz_separations *	sep,
		uint32_t	rgba,
		uint32_t	cmyk,
		const char *	name )

Add a separation with equivalents (null terminated name, colorspace)

(old, deprecated)

fz_clone_separations_for_overprint()

fz_separations * fz_clone_separations_for_overprint	(	fz_context *	ctx,
		fz_separations *	seps )

Return a separations object with all the spots in the input separations object that are set to composite, reset to be enabled. If there ARE no spots in the object, this returns NULL. If the object already has all its spots enabled, then just returns another handle on the same object.

fz_compare_separations()

int fz_compare_separations	(	fz_context *	ctx,
		const fz_separations *	sep1,
		const fz_separations *	sep2 )

Compare 2 separations structures (or NULLs).

Return 0 if identical, non-zero if not identical.

fz_convert_separation_colors()

void fz_convert_separation_colors	(	fz_context *	ctx,
		fz_colorspace *	src_cs,
		const float *	src_color,
		fz_separations *	dst_seps,
		fz_colorspace *	dst_cs,
		float *	dst_color,
		fz_color_params	color_params )

Convert a color given in terms of one colorspace, to a color in terms of another colorspace/separations.

fz_count_active_separations()

int fz_count_active_separations	(	fz_context *	ctx,
		const fz_separations *	seps )

Return the number of active separations.

fz_count_separations()

int fz_count_separations	(	fz_context *	ctx,
		const fz_separations *	sep )

fz_drop_separations()

void fz_drop_separations	(	fz_context *	ctx,
		fz_separations *	sep )

Decrement the reference count for a separations structure. When the reference count hits zero, the separations structure is freed.

Never throws exceptions.

fz_keep_separations()

fz_separations * fz_keep_separations	(	fz_context *	ctx,
		fz_separations *	sep )

Increment the reference count for a separations structure. Returns the same pointer.

Never throws exceptions.

fz_new_separations()

fz_separations * fz_new_separations	(	fz_context *	ctx,
		int	controllable )

Create a new separations structure (initially empty)

fz_separation_current_behavior()

fz_separation_behavior fz_separation_current_behavior	(	fz_context *	ctx,
		const fz_separations *	sep,
		int	separation )

Test for the current behavior of a separation.

fz_separation_equivalent()

void fz_separation_equivalent	(	fz_context *	ctx,
		const fz_separations *	seps,
		int	idx,
		fz_colorspace *	dst_cs,
		float *	dst_color,
		fz_colorspace *	prf,
		fz_color_params	color_params )

Get the equivalent separation color in a given colorspace.

fz_separation_name()

const char * fz_separation_name	(	fz_context *	ctx,
		const fz_separations *	sep,
		int	separation )

fz_set_separation_behavior()

void fz_set_separation_behavior	(	fz_context *	ctx,
		fz_separations *	sep,
		int	separation,
		fz_separation_behavior	behavior )

Control the rendering of a given separation.
