#include "mupdf/fitz/system.h"
#include "mupdf/fitz/context.h"
#include "mupdf/fitz/font.h"
#include "mupdf/fitz/path.h"
#include "mupdf/fitz/bidi.h"

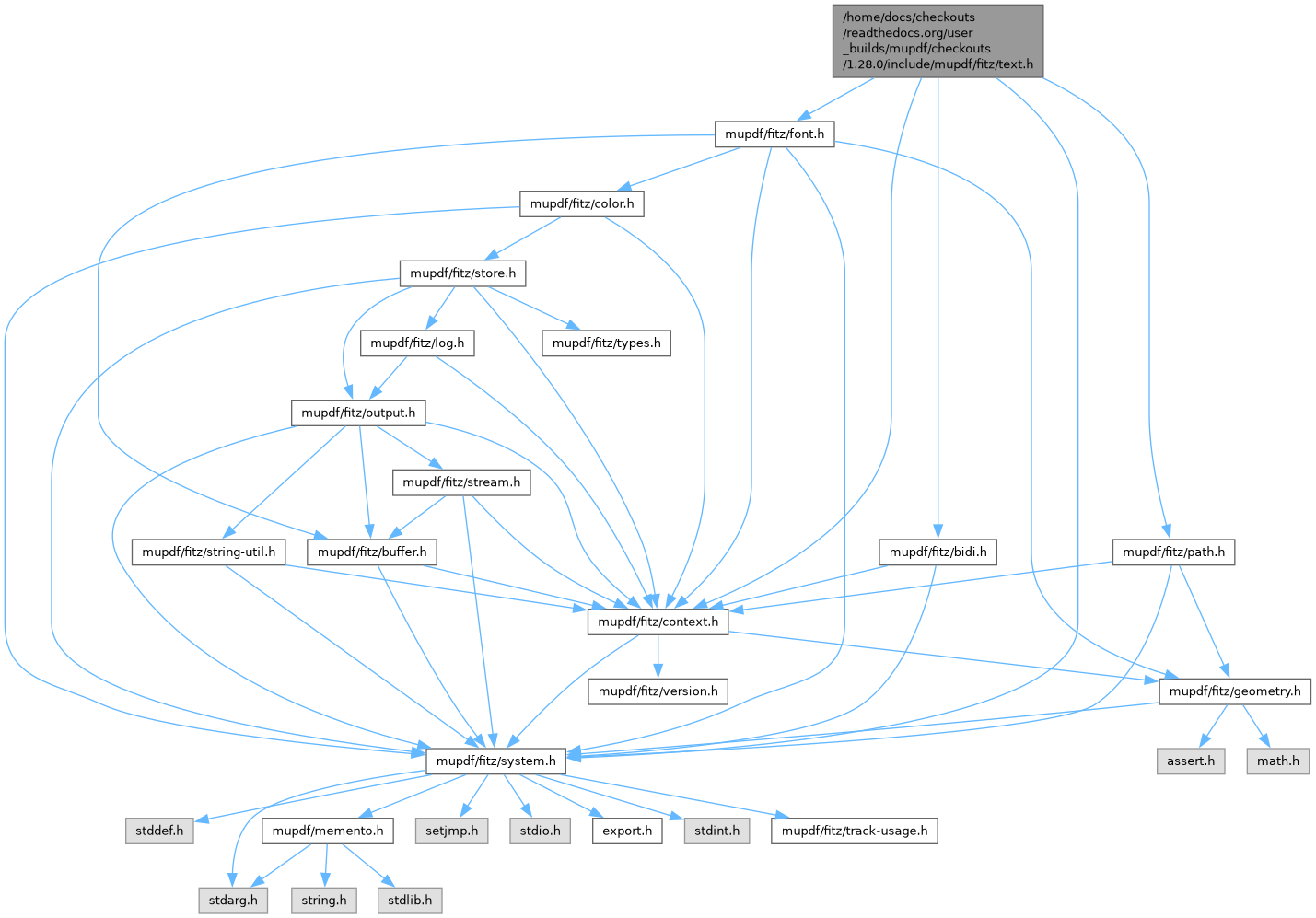

Include dependency graph for text.h:

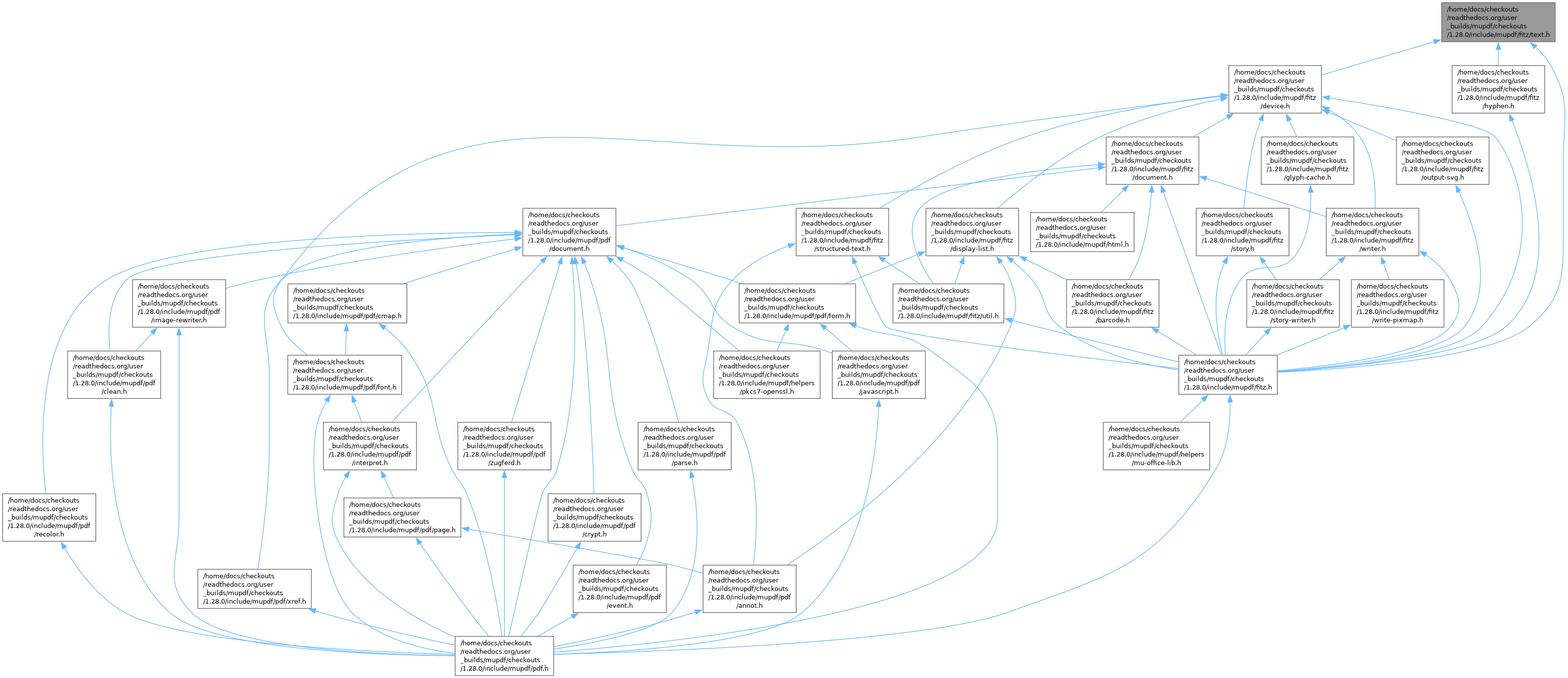

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	fz_text_item
struct	fz_text_span
struct	fz_text

Macros
#define	FZ_LANG_TAG2(c1, c2)
#define	FZ_LANG_TAG3(c1, c2, c3)

Typedefs
typedef struct fz_text_span	fz_text_span

Enumerations
enum	fz_text_language { FZ_LANG_UNSET = 0 , FZ_LANG_ur = FZ_LANG_TAG2('u','r') , FZ_LANG_urd = FZ_LANG_TAG3('u','r','d') , FZ_LANG_ko = FZ_LANG_TAG2('k','o') , FZ_LANG_ja = FZ_LANG_TAG2('j','a') , FZ_LANG_zh = FZ_LANG_TAG2('z','h') , FZ_LANG_zh_Hans = FZ_LANG_TAG3('z','h','s') , FZ_LANG_zh_Hant = FZ_LANG_TAG3('z','h','t') }

Functions
fz_text *	fz_new_text (fz_context *ctx)
fz_text *	fz_keep_text (fz_context ctx, const fz_text text)
void	fz_drop_text (fz_context ctx, const fz_text text)
void	fz_show_glyph (fz_context ctx, fz_text text, fz_font *font, fz_matrix trm, int glyph, int unicode, int wmode, int bidi_level, fz_bidi_direction markup_dir, fz_text_language language)
void	fz_show_glyph_aux (fz_context ctx, fz_text text, fz_font *font, fz_matrix trm, float adv, int glyph, int unicode, int cid, int wmode, int bidi_level, fz_bidi_direction markup_dir, fz_text_language lang)
fz_matrix	fz_show_string (fz_context ctx, fz_text text, fz_font font, fz_matrix trm, const char s, int wmode, int bidi_level, fz_bidi_direction markup_dir, fz_text_language language)
fz_matrix	fz_measure_string (fz_context ctx, fz_font user_font, fz_matrix trm, const char *s, int wmode, int bidi_level, fz_bidi_direction markup_dir, fz_text_language language)
fz_rect	fz_bound_text (fz_context ctx, const fz_text text, const fz_stroke_state *stroke, fz_matrix ctm)
fz_text_language	fz_text_language_from_string (const char *str)
char *	fz_string_from_text_language (char str[8], fz_text_language lang)

Macro Definition Documentation

◆ FZ_LANG_TAG2

#define FZ_LANG_TAG2	(		c1,
			c2 )

Value:

((c1-'a'+1) + ((c2-'a'+1)*27))

◆ FZ_LANG_TAG3

#define FZ_LANG_TAG3	(	c1,
		c2,
		c3 )

Value:

((c1-'a'+1) + ((c2-'a'+1)*27) + ((c3-'a'+1)*27*27))

Typedef Documentation

◆ fz_text_span

typedef struct fz_text_span fz_text_span

Enumeration Type Documentation

◆ fz_text_language

enum fz_text_language

Enumerator
FZ_LANG_UNSET
FZ_LANG_ur
FZ_LANG_urd
FZ_LANG_ko
FZ_LANG_ja
FZ_LANG_zh
FZ_LANG_zh_Hans
FZ_LANG_zh_Hant

Function Documentation

◆ fz_bound_text()

fz_rect fz_bound_text	(	fz_context *	ctx,
		const fz_text *	text,
		const fz_stroke_state *	stroke,
		fz_matrix	ctm )

Find the bounds of a given text object.

text: The text object to find the bounds of.

stroke: Pointer to the stroke attributes (for stroked text), or NULL (for filled text).

ctm: The matrix in use.

r: pointer to storage for the bounds.

Returns a pointer to r, which is updated to contain the bounding box for the text object.

◆ fz_drop_text()

void fz_drop_text	(	fz_context *	ctx,
		const fz_text *	text )

Decrement the reference count for the text object. When the reference count hits zero, the text object is freed.

Never throws exceptions.

◆ fz_keep_text()

fz_text * fz_keep_text	(	fz_context *	ctx,
		const fz_text *	text )

Increment the reference count for the text object. The same pointer is returned.

Never throws exceptions.

◆ fz_measure_string()

fz_matrix fz_measure_string	(	fz_context *	ctx,
		fz_font *	user_font,
		fz_matrix	trm,
		const char *	s,
		int	wmode,
		int	bidi_level,
		fz_bidi_direction	markup_dir,
		fz_text_language	language )

Measure the advance width of a UTF8 string should it be added to a text object.

This uses the same layout algorithms as fz_show_string, and can be used to calculate text alignment adjustments.

◆ fz_new_text()

fz_text * fz_new_text ( fz_context * ctx )

Create a new empty fz_text object.

Throws exception on failure to allocate.

◆ fz_show_glyph()

void fz_show_glyph	(	fz_context *	ctx,
		fz_text *	text,
		fz_font *	font,
		fz_matrix	trm,
		int	glyph,
		int	unicode,
		int	wmode,
		int	bidi_level,
		fz_bidi_direction	markup_dir,
		fz_text_language	language )

Add a glyph/unicode value to a text object.

text: Text object to add to.

font: The font the glyph should be added in.

trm: The transform to use for the glyph.

glyph: The glyph id to add.

unicode: The unicode character for the glyph.

cid: The CJK CID value or raw character code.

wmode: 1 for vertical mode, 0 for horizontal.

bidi_level: The bidirectional level for this glyph.

markup_dir: The direction of the text as specified in the markup.

language: The language in use (if known, 0 otherwise) (e.g. FZ_LANG_zh_Hans).

Throws exception on failure to allocate.

◆ fz_show_glyph_aux()

void fz_show_glyph_aux	(	fz_context *	ctx,
		fz_text *	text,
		fz_font *	font,
		fz_matrix	trm,
		float	adv,
		int	glyph,
		int	unicode,
		int	cid,
		int	wmode,
		int	bidi_level,
		fz_bidi_direction	markup_dir,
		fz_text_language	lang )

◆ fz_show_string()

fz_matrix fz_show_string	(	fz_context *	ctx,
		fz_text *	text,
		fz_font *	font,
		fz_matrix	trm,
		const char *	s,
		int	wmode,
		int	bidi_level,
		fz_bidi_direction	markup_dir,
		fz_text_language	language )

Add a UTF8 string to a text object.

text: Text object to add to.

font: The font the string should be added in.

trm: The transform to use.

s: The utf-8 string to add.

wmode: 1 for vertical mode, 0 for horizontal.

bidi_level: The bidirectional level for this glyph.

markup_dir: The direction of the text as specified in the markup.

language: The language in use (if known, 0 otherwise) (e.g. FZ_LANG_zh_Hans).

Returns the transform updated with the advance width of the string.

◆ fz_string_from_text_language()

char * fz_string_from_text_language	(	char	str[8],
		fz_text_language	lang )

Recover ISO 639 (639-{1,2,3,5}) language specification strings losslessly from a 15 bit fz_text_language code.

No validation is carried out. See note above.

◆ fz_text_language_from_string()

fz_text_language fz_text_language_from_string ( const char * str )

Convert ISO 639 (639-{1,2,3,5}) language specification strings losslessly to a 15 bit fz_text_language code.

No validation is carried out. Obviously invalid (out of spec) codes will be mapped to FZ_LANG_UNSET, but well-formed (but undefined) codes will be blithely accepted.
