band-writer.h File Reference

#include "mupdf/fitz/system.h"
#include "mupdf/fitz/context.h"
#include "mupdf/fitz/output.h"
#include "mupdf/fitz/color.h"
#include "mupdf/fitz/separation.h"

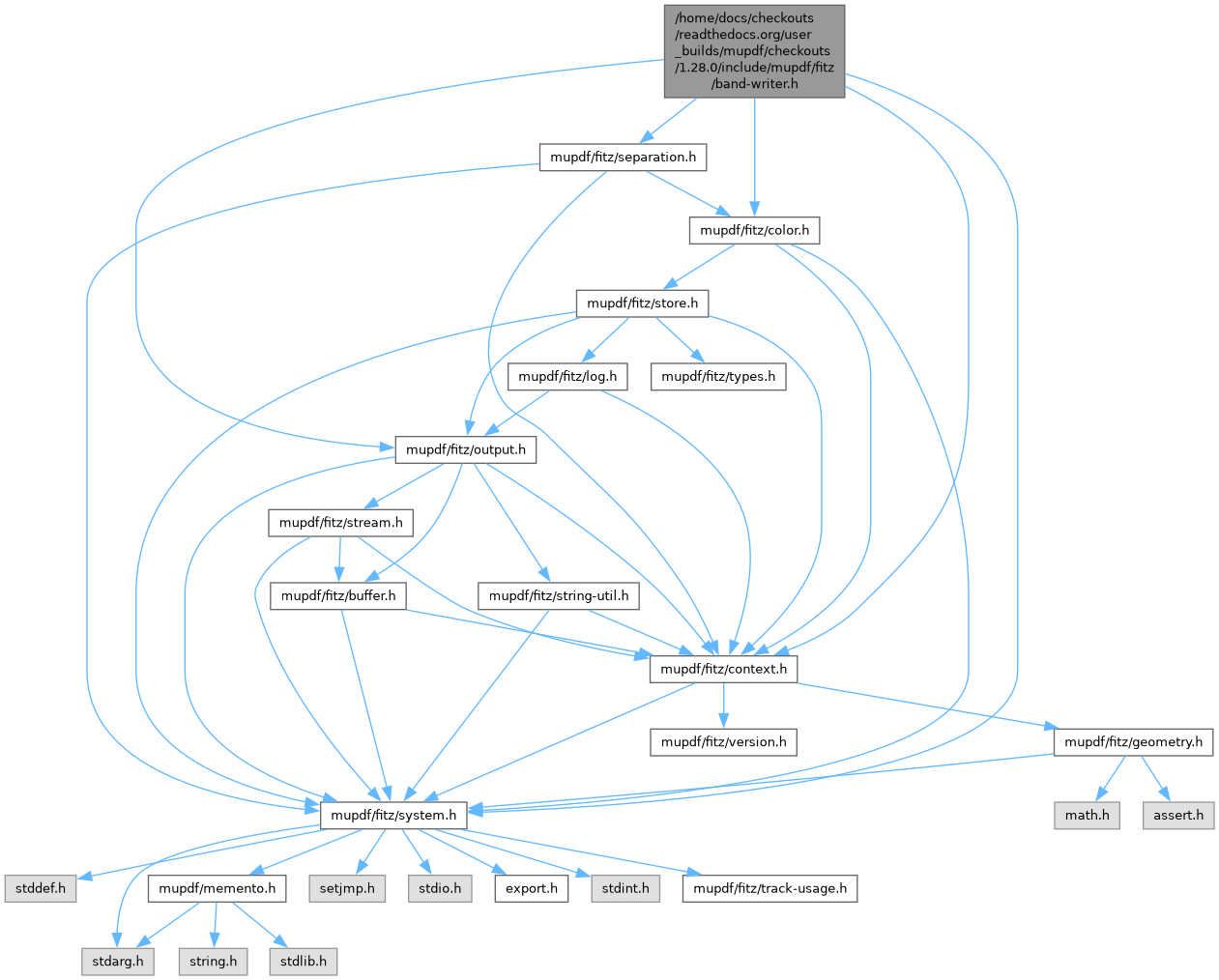

Include dependency graph for band-writer.h:

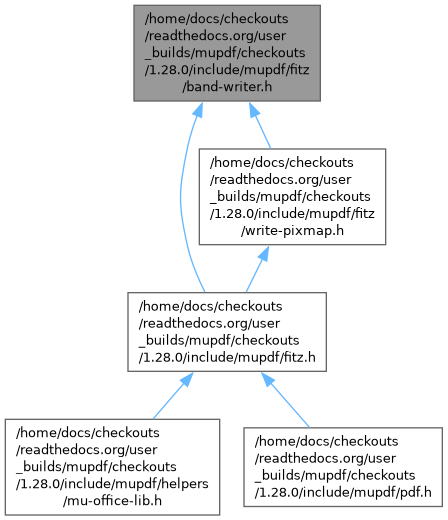

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	fz_band_writer

Macros
#define	fz_new_band_writer(C, M, O)

Typedefs
typedef struct fz_band_writer	fz_band_writer
typedef void	fz_write_header_fn(fz_context *ctx, fz_band_writer *writer, fz_colorspace *cs)
typedef void	fz_write_band_fn(fz_context *ctx, fz_band_writer *writer, int stride, int band_start, int band_height, const unsigned char *samples)
typedef void	fz_write_trailer_fn(fz_context *ctx, fz_band_writer *writer)
typedef void	fz_close_band_writer_fn(fz_context *ctx, fz_band_writer *writer)
typedef void	fz_drop_band_writer_fn(fz_context *ctx, fz_band_writer *writer)

Functions
void	fz_write_header (fz_context *ctx, fz_band_writer *writer, int w, int h, int n, int alpha, int xres, int yres, int pagenum, fz_colorspace *cs, fz_separations *seps)
void	fz_write_band (fz_context *ctx, fz_band_writer *writer, int stride, int band_height, const unsigned char *samples)
void	fz_close_band_writer (fz_context *ctx, fz_band_writer *writer)
void	fz_drop_band_writer (fz_context *ctx, fz_band_writer *writer)
fz_band_writer *	fz_new_band_writer_of_size (fz_context *ctx, size_t size, fz_output *out)

Macro Definition Documentation

fz_new_band_writer

#define fz_new_band_writer	(		C,
			M,
			O )

Value:

((M *)Memento_label(fz_new_band_writer_of_size(ctx, sizeof(M), O), #M))

Typedef Documentation

fz_band_writer

typedef struct fz_band_writer fz_band_writer

fz_band_writer

fz_close_band_writer_fn

typedef void fz_close_band_writer_fn(fz_context *ctx, fz_band_writer *writer)

fz_drop_band_writer_fn

typedef void fz_drop_band_writer_fn(fz_context *ctx, fz_band_writer *writer)

fz_write_band_fn

typedef void fz_write_band_fn(fz_context *ctx, fz_band_writer *writer, int stride, int band_start, int band_height, const unsigned char *samples)

fz_write_header_fn

typedef void fz_write_header_fn(fz_context *ctx, fz_band_writer *writer, fz_colorspace *cs)

fz_write_trailer_fn

typedef void fz_write_trailer_fn(fz_context *ctx, fz_band_writer *writer)

Function Documentation

fz_close_band_writer()

void fz_close_band_writer	(	fz_context *	ctx,
		fz_band_writer *	writer )

Finishes up the output and closes the band writer. After this call no more headers or bands may be written.

fz_drop_band_writer()

void fz_drop_band_writer	(	fz_context *	ctx,
		fz_band_writer *	writer )

Drop the reference to the band writer, causing it to be destroyed.

Never throws an exception.

fz_new_band_writer_of_size()

fz_band_writer * fz_new_band_writer_of_size	(	fz_context *	ctx,
		size_t	size,
		fz_output *	out )

fz_write_band()

void fz_write_band	(	fz_context *	ctx,
		fz_band_writer *	writer,
		int	stride,
		int	band_height,
		const unsigned char *	samples )

Cause a band writer to write the next band of data for an image.

stride: The byte offset from the first byte of the data for a pixel to the first byte of the data for the same pixel on the row below.

band_height: The number of lines in this band.

samples: Pointer to first byte of the data.

fz_write_header()

void fz_write_header	(	fz_context *	ctx,
		fz_band_writer *	writer,
		int	w,
		int	h,
		int	n,
		int	alpha,
		int	xres,
		int	yres,
		int	pagenum,
		fz_colorspace *	cs,
		fz_separations *	seps )

Cause a band writer to write the header for a banded image with the given properties/dimensions etc. This also configures the bandwriter for the format of the data to be passed in future calls.

w, h: Width and Height of the entire page.

n: Number of components (including spots and alphas).

alpha: Number of alpha components.

xres, yres: X and Y resolutions in dpi.

cs: Colorspace (NULL for bitmaps)

seps: Separation details (or NULL).
