fz_pixmap Struct Reference

#include <pixmap.h>

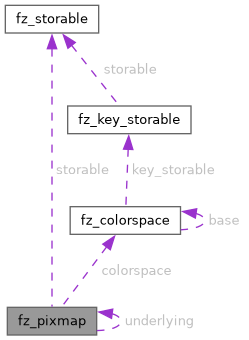

Collaboration diagram for fz_pixmap:

Public Attributes

fz_storable storable
int x
int y
int w
int h
unsigned char n
unsigned char s
unsigned char alpha
unsigned char flags
ptrdiff_t stride
fz_separationsseps
int xres
int yres
fz_colorspacecolorspace
unsigned char * samples
fz_pixmapunderlying

Detailed Description

Pixmaps represent a set of pixels for a 2 dimensional region of a plane. Each pixel has n components per pixel. The components are in the order process-components, spot-colors, alpha, where there can be 0 of any of those types. The data is in premultiplied alpha when rendering, but non-premultiplied for colorspace conversions and rescaling.

x, y: The minimum x and y coord of the region in pixels.

w, h: The width and height of the region in pixels.

n: The number of color components in the image. n = num composite colors + num spots + num alphas

s: The number of spot channels in the image.

alpha: 0 for no alpha, 1 for alpha present.

flags: flag bits. Bit 0: If set, draw the image with linear interpolation. Bit 1: If set, free the samples buffer when the pixmap is destroyed.

stride: The byte offset from the data for any given pixel to the data for the same pixel on the row below.

seps: NULL, or a pointer to a separations structure. If NULL, s should be 0.

xres, yres: Image resolution in dpi. Default is 96 dpi.

colorspace: Pointer to a colorspace object describing the colorspace the pixmap is in. If NULL, the image is a mask.

samples: Pointer to the first byte of the pixmap sample data. This is typically a simple block of memory w * h * n bytes of memory in which the components are stored linearly, but with the use of appropriate stride values, scanlines can be stored in different orders, and have different amounts of padding. The first n bytes are components 0 to n-1 for the pixel at (x,y). Each successive n bytes gives another pixel in scanline order as we move across the line. The start of each scanline is offset the start of the previous one by stride bytes.

Member Data Documentation

◆ alpha

unsigned char fz_pixmap::alpha

◆ colorspace

fz_colorspace* fz_pixmap::colorspace

◆ flags

unsigned char fz_pixmap::flags

◆ h

int fz_pixmap::h

◆ n

unsigned char fz_pixmap::n

◆ s

unsigned char fz_pixmap::s

◆ samples

unsigned char* fz_pixmap::samples

◆ seps

fz_separations* fz_pixmap::seps

◆ storable

fz_storable fz_pixmap::storable

◆ stride

ptrdiff_t fz_pixmap::stride

◆ underlying

fz_pixmap* fz_pixmap::underlying

◆ w

int fz_pixmap::w

◆ x

int fz_pixmap::x

◆ xres

int fz_pixmap::xres

◆ y

int fz_pixmap::y

◆ yres

int fz_pixmap::yres

The documentation for this struct was generated from the following file:
  • /home/docs/checkouts/readthedocs.org/user_builds/mupdf/checkouts/1.28.0/include/mupdf/fitz/pixmap.h
