fz_shade Struct Reference

#include <shade.h>

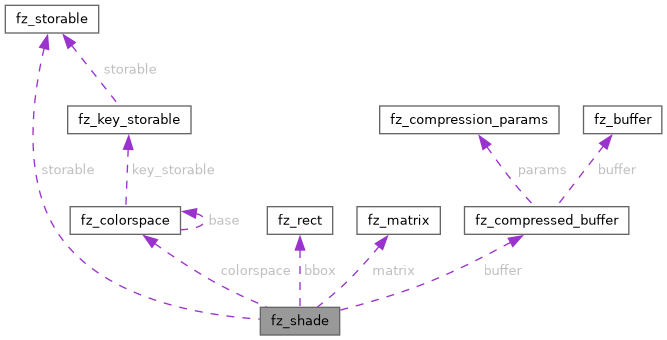

Collaboration diagram for fz_shade:

Public Attributes
fz_storable	storable
fz_rect	bbox
fz_colorspace *	colorspace
fz_matrix	matrix
int	use_background
float	background [FZ_MAX_COLORS]
int	function_stride
float *	function
int	type
union {
struct {
int   extend [2]
float   coords [2][3]
}   l_or_r
struct {
int   vprow
int   bpflag
int   bpcoord
int   bpcomp
float   x0
float   x1
float   y0
float   y1
float   c0 [FZ_MAX_COLORS]
float   c1 [FZ_MAX_COLORS]
}   m
struct {
fz_matrix   matrix
int   xdivs
int   ydivs
float   domain [2][2]
float *   fn_vals
}   f
}	u
fz_compressed_buffer *	buffer

Detailed Description

Structure is public to allow derived classes. Do not access the members directly.

Member Data Documentation

background

float fz_shade::background[FZ_MAX_COLORS]

bbox

fz_rect fz_shade::bbox

bpcomp

int fz_shade::bpcomp

bpcoord

int fz_shade::bpcoord

bpflag

int fz_shade::bpflag

buffer

fz_compressed_buffer* fz_shade::buffer

c0

float fz_shade::c0[FZ_MAX_COLORS]

c1

float fz_shade::c1[FZ_MAX_COLORS]

colorspace

fz_colorspace* fz_shade::colorspace

coords

float fz_shade::coords[2][3]

domain

float fz_shade::domain[2][2]

extend

int fz_shade::extend[2]

[struct]

struct { ... } fz_shade::f

fn_vals

float* fz_shade::fn_vals

function

float* fz_shade::function

function_stride

int fz_shade::function_stride

[struct]

struct { ... } fz_shade::l_or_r

[struct]

struct { ... } fz_shade::m

matrix

fz_matrix fz_shade::matrix

storable

fz_storable fz_shade::storable

type

int fz_shade::type

[union]

union { ... } fz_shade::u

use_background

int fz_shade::use_background

vprow

int fz_shade::vprow

x0

float fz_shade::x0

x1

float fz_shade::x1

xdivs

int fz_shade::xdivs

y0

float fz_shade::y0

y1

float fz_shade::y1

ydivs

int fz_shade::ydivs

---

The documentation for this struct was generated from the following file:

• /home/docs/checkouts/readthedocs.org/user_builds/mupdf/checkouts/1.28.0/include/mupdf/fitz/shade.h
