fz_stext_struct Struct Reference

#include <structured-text.h>

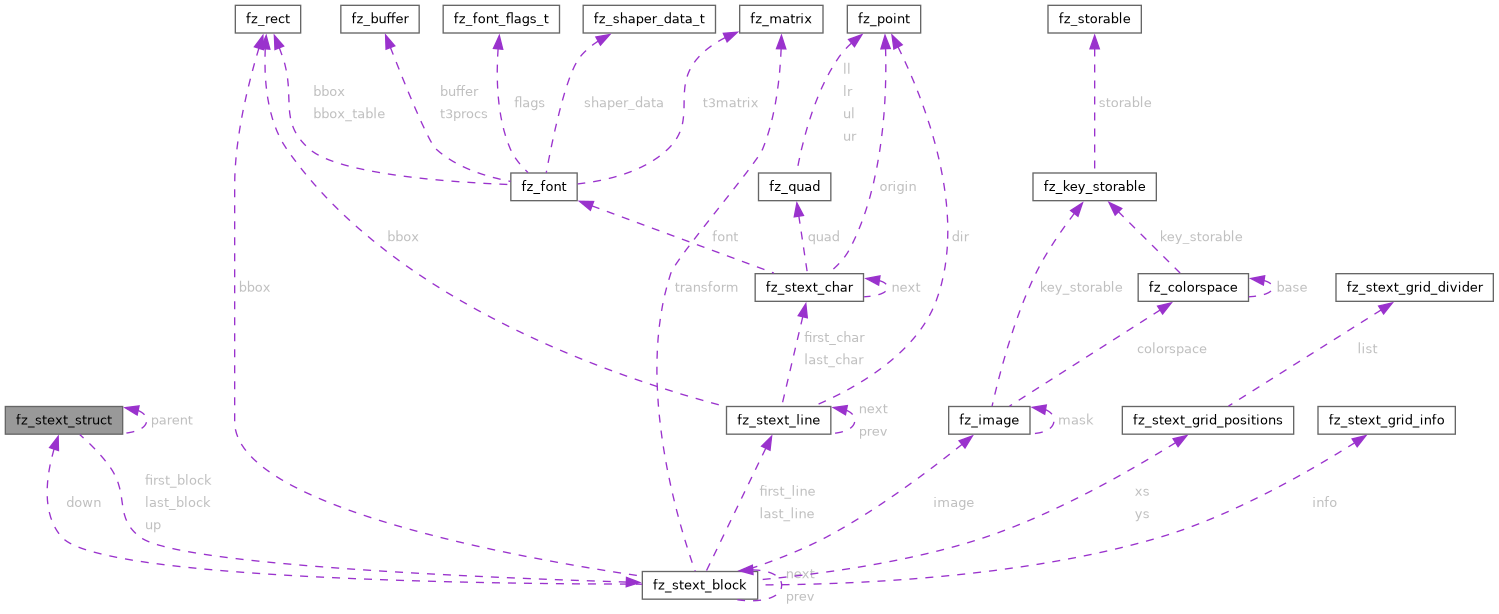

Collaboration diagram for fz_stext_struct:

Public Attributes
fz_stext_block *	up
fz_stext_struct *	parent
fz_stext_block *	first_block
fz_stext_block *	last_block
fz_structure	standard
char	raw [FZ_FLEXIBLE_ARRAY]

Detailed Description

When we are collecting the structure information from PDF structure trees/tags, we end up with a tree of nodes. The structure should be walked in depth-first traversal order to extract the content.

An fz_stext_struct pointer can be NULL to indicate that we know there is a child there within the complete tree, but we don't know what it is yet.

Member Data Documentation

first_block

fz_stext_block* fz_stext_struct::first_block

last_block

fz_stext_block* fz_stext_struct::last_block

parent

fz_stext_struct* fz_stext_struct::parent

raw

char fz_stext_struct::raw[FZ_FLEXIBLE_ARRAY]

standard

fz_structure fz_stext_struct::standard

up

fz_stext_block* fz_stext_struct::up

---

The documentation for this struct was generated from the following file:

• /home/docs/checkouts/readthedocs.org/user_builds/mupdf/checkouts/1.28.0/include/mupdf/fitz/structured-text.h
