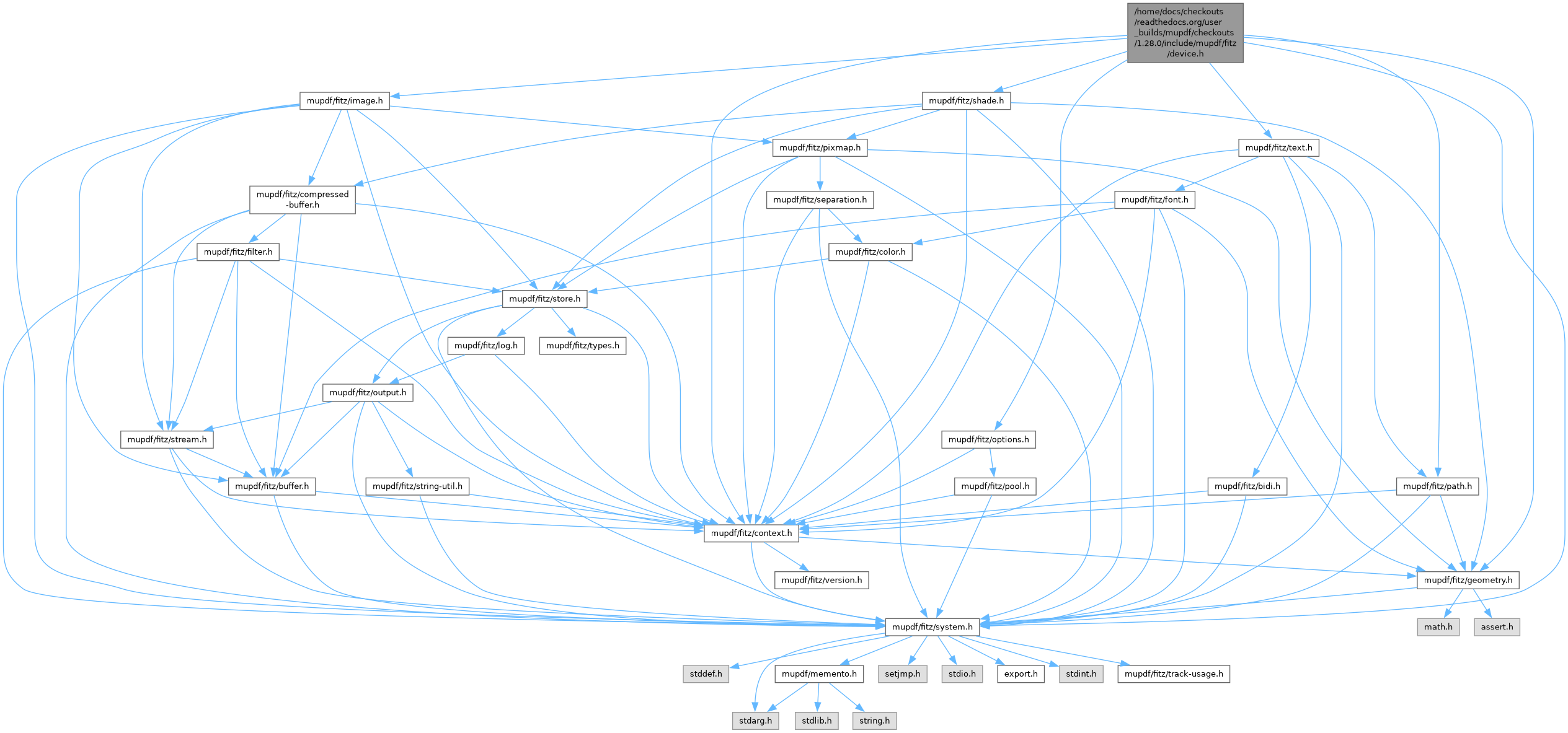

#include "mupdf/fitz/system.h"#include "mupdf/fitz/context.h"#include "mupdf/fitz/geometry.h"#include "mupdf/fitz/image.h"#include "mupdf/fitz/shade.h"#include "mupdf/fitz/path.h"#include "mupdf/fitz/text.h"#include "mupdf/fitz/options.h"
Go to the source code of this file.
Classes | |
| struct | fz_function |
| struct | fz_device_container_stack |
| struct | fz_device |
| struct | fz_cookie |
| struct | fz_culling_options |
| struct | fz_draw_options |
Macros | |
| #define | fz_new_derived_function(CTX, TYPE, SIZE, M, N, EVAL, DROP) |
| #define | fz_new_derived_device(CTX, TYPE) |
| #define | fz_new_derived_passthrough_device(CTX, PASSTHRU, TYPE) |
Typedefs | |
| typedef struct fz_device | fz_device |
| typedef struct fz_function | fz_function |
| typedef void | fz_function_eval_fn(fz_context *, fz_function *, const float *, float *) |
Variables | |
| FZ_DATA const char * | fz_draw_options_usage |
Macro Definition Documentation
◆ fz_new_derived_device
| #define fz_new_derived_device | ( | CTX, | |
| TYPE ) |
◆ fz_new_derived_function
| #define fz_new_derived_function | ( | CTX, | |
| TYPE, | |||
| SIZE, | |||
| M, | |||
| N, | |||
| EVAL, | |||
| DROP ) |
◆ fz_new_derived_passthrough_device
| #define fz_new_derived_passthrough_device | ( | CTX, | |
| PASSTHRU, | |||
| TYPE ) |
Typedef Documentation
◆ fz_device
| typedef struct fz_device fz_device |
The different format handlers (pdf, xps etc) interpret pages to a device. These devices can then process the stream of calls they receive in various ways: The trace device outputs debugging information for the calls. The draw device will render them. The list device stores them in a list to play back later. The text device performs text extraction and searching. The bbox device calculates the bounding box for the page. Other devices can (and will) be written in the future.
◆ fz_function
| typedef struct fz_function fz_function |
◆ fz_function_eval_fn
| typedef void fz_function_eval_fn(fz_context *, fz_function *, const float *, float *) |
Enumeration Type Documentation
◆ anonymous enum
◆ anonymous enum
| anonymous enum |
◆ anonymous enum
| anonymous enum |
◆ anonymous enum
◆ anonymous enum
| anonymous enum |
◆ anonymous enum
◆ fz_metatext
| enum fz_metatext |
◆ fz_structure
| enum fz_structure |
Function Documentation
◆ fz_apply_draw_options()
| void fz_apply_draw_options | ( | fz_context * | ctx, |
| fz_draw_options * | draw_options, | ||
| fz_options * | options ) |
Parse draw device options from an fz_options structure.
This assumes that the draw_options struct has been initialised already.
◆ fz_begin_group()
| void fz_begin_group | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| fz_rect | area, | ||
| fz_colorspace * | cs, | ||
| int | isolated, | ||
| int | knockout, | ||
| int | blendmode, | ||
| float | alpha ) |
◆ fz_begin_layer()
| void fz_begin_layer | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| const char * | layer_name ) |
◆ fz_begin_mask()
| void fz_begin_mask | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| fz_rect | area, | ||
| int | luminosity, | ||
| fz_colorspace * | colorspace, | ||
| const float * | bc, | ||
| fz_color_params | color_params ) |
◆ fz_begin_metatext()
| void fz_begin_metatext | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| fz_metatext | meta, | ||
| const char * | text ) |
◆ fz_begin_structure()
| void fz_begin_structure | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| fz_structure | standard, | ||
| const char * | raw, | ||
| int | idx ) |
◆ fz_begin_tile()
| void fz_begin_tile | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| fz_rect | area, | ||
| fz_rect | view, | ||
| float | xstep, | ||
| float | ystep, | ||
| fz_matrix | ctm ) |
◆ fz_begin_tile_id()
| int fz_begin_tile_id | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| fz_rect | area, | ||
| fz_rect | view, | ||
| float | xstep, | ||
| float | ystep, | ||
| fz_matrix | ctm, | ||
| int | id ) |
◆ fz_begin_tile_tid()
| int fz_begin_tile_tid | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| fz_rect | area, | ||
| fz_rect | view, | ||
| float | xstep, | ||
| float | ystep, | ||
| fz_matrix | ctm, | ||
| int | id, | ||
| int | doc_id ) |
◆ fz_blendmode_name()
| const char * fz_blendmode_name | ( | int | blendmode | ) |
Map from enumeration to blend mode string.
The string is static, with arbitrary lifespan.
◆ fz_clip_image_mask()
| void fz_clip_image_mask | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| fz_image * | image, | ||
| fz_matrix | ctm, | ||
| fz_rect | scissor ) |
◆ fz_clip_path()
| void fz_clip_path | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| const fz_path * | path, | ||
| int | even_odd, | ||
| fz_matrix | ctm, | ||
| fz_rect | scissor ) |
◆ fz_clip_stroke_path()
| void fz_clip_stroke_path | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| const fz_path * | path, | ||
| const fz_stroke_state * | stroke, | ||
| fz_matrix | ctm, | ||
| fz_rect | scissor ) |
◆ fz_clip_stroke_text()
| void fz_clip_stroke_text | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| const fz_text * | text, | ||
| const fz_stroke_state * | stroke, | ||
| fz_matrix | ctm, | ||
| fz_rect | scissor ) |
◆ fz_clip_text()
| void fz_clip_text | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| const fz_text * | text, | ||
| fz_matrix | ctm, | ||
| fz_rect | scissor ) |
◆ fz_close_device()
| void fz_close_device | ( | fz_context * | ctx, |
| fz_device * | dev ) |
Signal the end of input, and flush any buffered output. This is NOT called implicitly on fz_drop_device. This may throw exceptions.
◆ fz_device_current_scissor()
| fz_rect fz_device_current_scissor | ( | fz_context * | ctx, |
| fz_device * | dev ) |
Find current scissor region as tracked by the device.
◆ fz_disable_device_hints()
| void fz_disable_device_hints | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| int | hints ) |
Disable (clear) hint bits within the hint bitfield for a device.
◆ fz_drop_device()
| void fz_drop_device | ( | fz_context * | ctx, |
| fz_device * | dev ) |
Reduce the reference count on a device. When the reference count reaches zero, the device and its resources will be freed. Don't forget to call fz_close_device before dropping the device, or you may get incomplete output!
Never throws exceptions.
◆ fz_drop_function()
| void fz_drop_function | ( | fz_context * | ctx, |
| fz_function * | func ) |
◆ fz_enable_device_hints()
| void fz_enable_device_hints | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| int | hints ) |
Enable (set) hint bits within the hint bitfield for a device.
◆ fz_end_group()
| void fz_end_group | ( | fz_context * | ctx, |
| fz_device * | dev ) |
◆ fz_end_layer()
| void fz_end_layer | ( | fz_context * | ctx, |
| fz_device * | dev ) |
◆ fz_end_mask()
| void fz_end_mask | ( | fz_context * | ctx, |
| fz_device * | dev ) |
◆ fz_end_mask_tr()
| void fz_end_mask_tr | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| fz_function * | fn ) |
◆ fz_end_metatext()
| void fz_end_metatext | ( | fz_context * | ctx, |
| fz_device * | dev ) |
◆ fz_end_structure()
| void fz_end_structure | ( | fz_context * | ctx, |
| fz_device * | dev ) |
◆ fz_end_tile()
| void fz_end_tile | ( | fz_context * | ctx, |
| fz_device * | dev ) |
◆ fz_eval_function()
| void fz_eval_function | ( | fz_context * | ctx, |
| fz_function * | func, | ||
| const float * | in, | ||
| int | inlen, | ||
| float * | out, | ||
| int | outlen ) |
◆ fz_fill_image()
| void fz_fill_image | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| fz_image * | image, | ||
| fz_matrix | ctm, | ||
| float | alpha, | ||
| fz_color_params | color_params ) |
◆ fz_fill_image_mask()
| void fz_fill_image_mask | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| fz_image * | image, | ||
| fz_matrix | ctm, | ||
| fz_colorspace * | colorspace, | ||
| const float * | color, | ||
| float | alpha, | ||
| fz_color_params | color_params ) |
◆ fz_fill_path()
| void fz_fill_path | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| const fz_path * | path, | ||
| int | even_odd, | ||
| fz_matrix | ctm, | ||
| fz_colorspace * | colorspace, | ||
| const float * | color, | ||
| float | alpha, | ||
| fz_color_params | color_params ) |
Device calls; graphics primitives and containers.
◆ fz_fill_shade()
| void fz_fill_shade | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| fz_shade * | shade, | ||
| fz_matrix | ctm, | ||
| float | alpha, | ||
| fz_color_params | color_params ) |
◆ fz_fill_text()
| void fz_fill_text | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| const fz_text * | text, | ||
| fz_matrix | ctm, | ||
| fz_colorspace * | colorspace, | ||
| const float * | color, | ||
| float | alpha, | ||
| fz_color_params | color_params ) |
◆ fz_function_size()
| size_t fz_function_size | ( | fz_context * | ctx, |
| fz_function * | func ) |
◆ fz_ignore_text()
| void fz_ignore_text | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| const fz_text * | text, | ||
| fz_matrix | ctm ) |
◆ fz_init_draw_options()
| void fz_init_draw_options | ( | fz_context * | ctx, |
| fz_draw_options * | draw_options ) |
Initialise a draw_options struct to sensible values.
◆ fz_keep_device()
| fz_device * fz_keep_device | ( | fz_context * | ctx, |
| fz_device * | dev ) |
Increment the reference count for a device. Returns the same pointer.
Never throws exceptions.
◆ fz_keep_function()
| fz_function * fz_keep_function | ( | fz_context * | ctx, |
| fz_function * | func ) |
◆ fz_lookup_blendmode()
| int fz_lookup_blendmode | ( | const char * | name | ) |
Map from (case sensitive) blend mode string to enumeration.
◆ fz_new_bbox_device()
| fz_device * fz_new_bbox_device | ( | fz_context * | ctx, |
| fz_rect * | rectp ) |
Create a device to compute the bounding box of all marks on a page.
The returned bounding box will be the union of all bounding boxes of all objects on a page.
◆ fz_new_culling_device()
| fz_device * fz_new_culling_device | ( | fz_context * | ctx, |
| fz_device * | passthrough, | ||
| const fz_culling_options * | opts ) |
Create an 'cull' device.
This device passes through all calls to the 'passthrough' device, except for text operations that may be culled.
The decision as to whether to cull a glyph or not is made by calling the 'cull_glyph' function in the options structure with the rectangle that would be affected. If the function returns 0, the glyph is passed through. if the function returns 1, the glyph is dropped. All other values reserved.
◆ fz_new_culling_device_with_rects()
| fz_device * fz_new_culling_device_with_rects | ( | fz_context * | ctx, |
| fz_device * | passthrough, | ||
| int | n, | ||
| const fz_rect * | rects ) |
Create an culling device that will drop any glyphs that significantly overlap any of the given list of rects.
The rect list is copied into the device, so does not need to exist beyond this call.
◆ fz_new_device_of_size()
| fz_device * fz_new_device_of_size | ( | fz_context * | ctx, |
| int | size ) |
Devices are created by calls to device implementations, for instance: foo_new_device(). These will be implemented by calling fz_new_derived_device(ctx, foo_device) where foo_device is a structure "derived from" fz_device, for instance typedef struct { fz_device base; ...extras...} foo_device;
◆ fz_new_draw_device()
| fz_device * fz_new_draw_device | ( | fz_context * | ctx, |
| fz_matrix | transform, | ||
| fz_pixmap * | dest ) |
Create a device to draw on a pixmap.
dest: Target pixmap for the draw device. See fz_new_pixmap* for how to obtain a pixmap. The pixmap is not cleared by the draw device, see fz_clear_pixmap* for how to clear it prior to calling fz_new_draw_device. Free the device by calling fz_drop_device.
transform: Transform from user space in points to device space in pixels.
◆ fz_new_draw_device_type3()
| fz_device * fz_new_draw_device_type3 | ( | fz_context * | ctx, |
| fz_matrix | transform, | ||
| fz_pixmap * | dest ) |
◆ fz_new_draw_device_with_bbox()
| fz_device * fz_new_draw_device_with_bbox | ( | fz_context * | ctx, |
| fz_matrix | transform, | ||
| fz_pixmap * | dest, | ||
| const fz_irect * | clip ) |
Create a device to draw on a pixmap.
dest: Target pixmap for the draw device. See fz_new_pixmap* for how to obtain a pixmap. The pixmap is not cleared by the draw device, see fz_clear_pixmap* for how to clear it prior to calling fz_new_draw_device. Free the device by calling fz_drop_device.
transform: Transform from user space in points to device space in pixels.
clip: Bounding box to restrict any marking operations of the draw device.
◆ fz_new_draw_device_with_bbox_proof()
| fz_device * fz_new_draw_device_with_bbox_proof | ( | fz_context * | ctx, |
| fz_matrix | transform, | ||
| fz_pixmap * | dest, | ||
| const fz_irect * | clip, | ||
| fz_colorspace * | cs ) |
Create a device to draw on a pixmap.
dest: Target pixmap for the draw device. See fz_new_pixmap* for how to obtain a pixmap. The pixmap is not cleared by the draw device, see fz_clear_pixmap* for how to clear it prior to calling fz_new_draw_device. Free the device by calling fz_drop_device.
transform: Transform from user space in points to device space in pixels.
clip: Bounding box to restrict any marking operations of the draw device.
proof_cs: Color space to render to prior to mapping to color space defined by pixmap.
◆ fz_new_draw_device_with_options()
| fz_device * fz_new_draw_device_with_options | ( | fz_context * | ctx, |
| const fz_draw_options * | options, | ||
| fz_rect | mediabox, | ||
| fz_pixmap ** | pixmap ) |
Create a new pixmap and draw device, using the specified options.
options: Options to configure the draw device, and choose the resolution and colorspace.
mediabox: The bounds of the page in points.
pixmap: An out parameter containing the newly created pixmap.
◆ fz_new_draw_device_with_proof()
| fz_device * fz_new_draw_device_with_proof | ( | fz_context * | ctx, |
| fz_matrix | transform, | ||
| fz_pixmap * | dest, | ||
| fz_colorspace * | proof_cs ) |
Create a device to draw on a pixmap.
dest: Target pixmap for the draw device. See fz_new_pixmap* for how to obtain a pixmap. The pixmap is not cleared by the draw device, see fz_clear_pixmap* for how to clear it prior to calling fz_new_draw_device. Free the device by calling fz_drop_device.
transform: Transform from user space in points to device space in pixels.
proof_cs: Intermediate color space to map though when mapping to color space defined by pixmap.
◆ fz_new_function_of_size()
| fz_function * fz_new_function_of_size | ( | fz_context * | ctx, |
| int | size, | ||
| size_t | size2, | ||
| int | m, | ||
| int | n, | ||
| fz_function_eval_fn * | eval, | ||
| fz_store_drop_fn * | drop ) |
◆ fz_new_passthrough_device_of_size()
| fz_device * fz_new_passthrough_device_of_size | ( | fz_context * | ctx, |
| fz_device * | passthrough, | ||
| int | size ) |
Create a passthrough device.
The device is created with stub functions that do nothing except pass calls through to the given sub device. This includes close and drop!
The caller of this function can then override any functions it wants to handle itself.
◆ fz_new_test_device()
| fz_device * fz_new_test_device | ( | fz_context * | ctx, |
| int * | is_color, | ||
| float | threshold, | ||
| int | options, | ||
| fz_device * | passthrough ) |
Create a device to test for features.
Currently only tests for the presence of non-grayscale colors.
is_color: Possible values returned: 0: Definitely greyscale 1: Probably color (all colors were grey, but there were images or shadings in a non grey colorspace). 2: Definitely color
threshold: The difference from grayscale that will be tolerated. Typical values to use are either 0 (be exact) and 0.02 (allow an imperceptible amount of slop).
options: A set of bitfield options, from the FZ_TEST_OPT set.
passthrough: A device to pass all calls through to, or NULL. If set, then the test device can both test and pass through to an underlying device (like, say, the display list device). This means that a display list can be created and at the end we'll know if it's colored or not.
In the absence of a passthrough device, the device will throw an exception to stop page interpretation when color is found.
◆ fz_new_trace_device()
| fz_device * fz_new_trace_device | ( | fz_context * | ctx, |
| fz_output * | out ) |
Create a device to print a debug trace of all device calls.
◆ fz_new_xmltext_device()
| fz_device * fz_new_xmltext_device | ( | fz_context * | ctx, |
| fz_output * | out ) |
Create a device to output raw information.
◆ fz_parse_draw_options()
| fz_draw_options * fz_parse_draw_options | ( | fz_context * | ctx, |
| fz_draw_options * | draw_options, | ||
| const char * | string ) |
Parse draw device options from a comma separated key-value string.
This initialises the draw_options struct first.
◆ fz_pop_clip()
| void fz_pop_clip | ( | fz_context * | ctx, |
| fz_device * | dev ) |
◆ fz_render_flags()
| void fz_render_flags | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| int | set, | ||
| int | clear ) |
◆ fz_set_default_colorspaces()
| void fz_set_default_colorspaces | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| fz_default_colorspaces * | default_cs ) |
◆ fz_stroke_path()
| void fz_stroke_path | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| const fz_path * | path, | ||
| const fz_stroke_state * | stroke, | ||
| fz_matrix | ctm, | ||
| fz_colorspace * | colorspace, | ||
| const float * | color, | ||
| float | alpha, | ||
| fz_color_params | color_params ) |
◆ fz_stroke_text()
| void fz_stroke_text | ( | fz_context * | ctx, |
| fz_device * | dev, | ||
| const fz_text * | text, | ||
| const fz_stroke_state * | stroke, | ||
| fz_matrix | ctm, | ||
| fz_colorspace * | colorspace, | ||
| const float * | color, | ||
| float | alpha, | ||
| fz_color_params | color_params ) |
◆ fz_structure_from_string()
| fz_structure fz_structure_from_string | ( | const char * | str | ) |
◆ fz_structure_to_string()
| const char * fz_structure_to_string | ( | fz_structure | type | ) |
Variable Documentation
◆ fz_draw_options_usage
|
extern |
