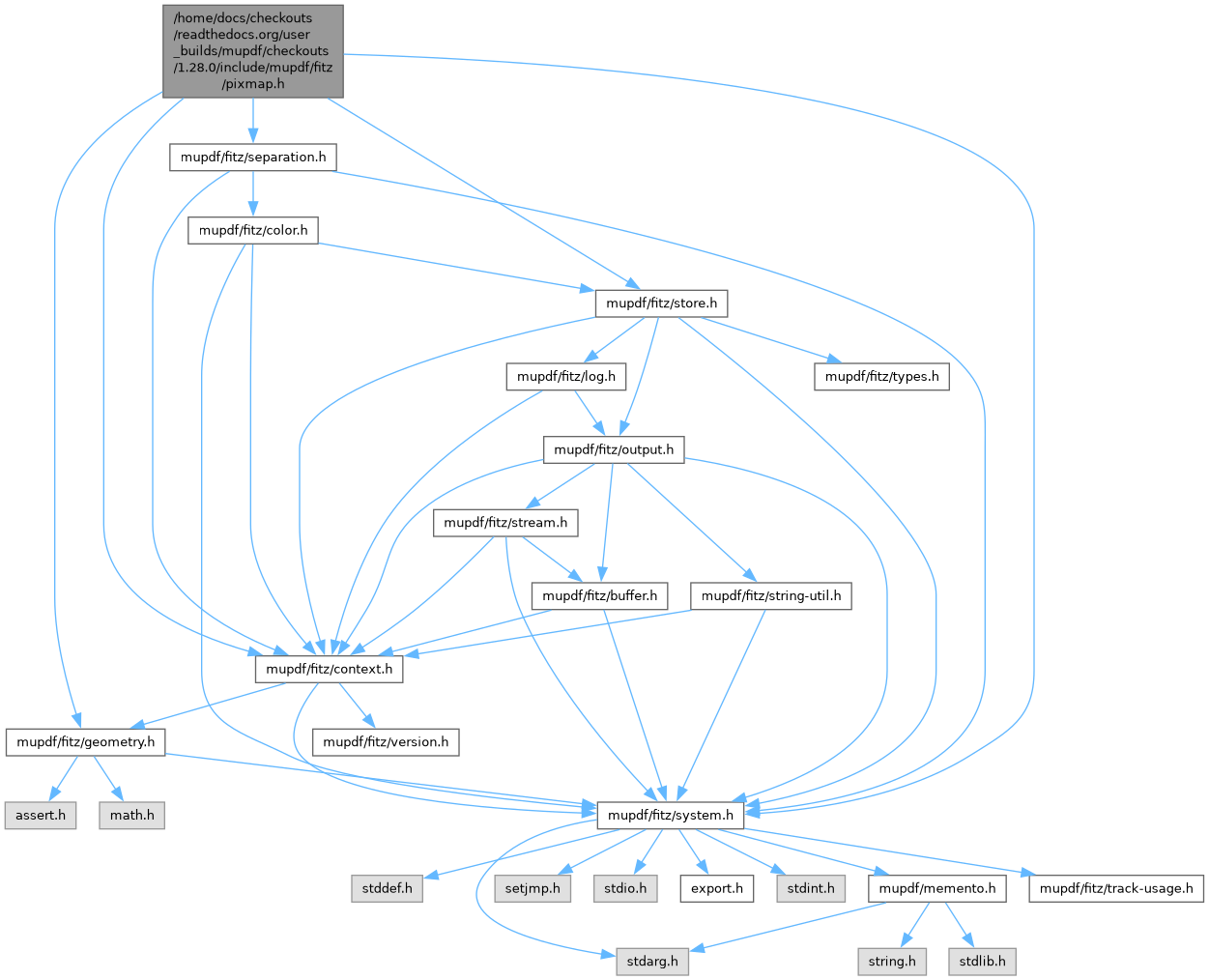

#include "mupdf/fitz/system.h"#include "mupdf/fitz/context.h"#include "mupdf/fitz/geometry.h"#include "mupdf/fitz/store.h"#include "mupdf/fitz/separation.h"
Go to the source code of this file.
Classes | |
| struct | fz_pixmap |
Typedefs | |
| typedef struct fz_overprint | fz_overprint |
Enumerations | |
| enum | { FZ_PIXMAP_FLAG_INTERPOLATE = 1 , FZ_PIXMAP_FLAG_FREE_SAMPLES = 2 } |
Typedef Documentation
◆ fz_overprint
| typedef struct fz_overprint fz_overprint |
Pixmaps represent a set of pixels for a 2 dimensional region of a plane. Each pixel has n components per pixel. The components are in the order process-components, spot-colors, alpha, where there can be 0 of any of those types. The data is in premultiplied alpha when rendering, but non-premultiplied for colorspace conversions and rescaling.
Enumeration Type Documentation
◆ anonymous enum
Function Documentation
◆ fz_alpha_from_gray()
| fz_pixmap * fz_alpha_from_gray | ( | fz_context * | ctx, |
| fz_pixmap * | gray ) |
◆ fz_alpha_from_rgb()
| fz_pixmap * fz_alpha_from_rgb | ( | fz_context * | ctx, |
| fz_pixmap * | color ) |
◆ fz_autowarp_pixmap()
| fz_pixmap * fz_autowarp_pixmap | ( | fz_context * | ctx, |
| fz_pixmap * | src, | ||
| fz_quad | points ) |
◆ fz_clear_pixmap()
| void fz_clear_pixmap | ( | fz_context * | ctx, |
| fz_pixmap * | pix ) |
Sets all components (including alpha) of all pixels in a pixmap to 0.
pix: The pixmap to clear.
◆ fz_clear_pixmap_rect_with_value()
| void fz_clear_pixmap_rect_with_value | ( | fz_context * | ctx, |
| fz_pixmap * | pix, | ||
| int | value, | ||
| fz_irect | r ) |
Clears a subrect of a pixmap with the given value.
pix: The pixmap to clear.
value: Values in the range 0 to 255 are valid. Each component sample for each pixel in the pixmap will be set to this value, while alpha will always be set to 255 (non-transparent).
r: the rectangle.
◆ fz_clear_pixmap_with_value()
| void fz_clear_pixmap_with_value | ( | fz_context * | ctx, |
| fz_pixmap * | pix, | ||
| int | value ) |
Clears a pixmap with the given value.
pix: The pixmap to clear.
value: Values in the range 0 to 255 are valid. Each component sample for each pixel in the pixmap will be set to this value, while alpha will always be set to 255 (non-transparent).
This function is horrible, and should be removed from the API and replaced with a less magic one.
◆ fz_clone_pixmap()
| fz_pixmap * fz_clone_pixmap | ( | fz_context * | ctx, |
| const fz_pixmap * | old ) |
Clone a pixmap, copying the pixels and associated data to new storage.
The reference count of 'old' is unchanged.
◆ fz_clone_pixmap_area_with_different_seps()
| fz_pixmap * fz_clone_pixmap_area_with_different_seps | ( | fz_context * | ctx, |
| fz_pixmap * | src, | ||
| const fz_irect * | bbox, | ||
| fz_colorspace * | dcs, | ||
| fz_separations * | seps, | ||
| fz_color_params | color_params, | ||
| fz_default_colorspaces * | default_cs ) |
◆ fz_convert_pixmap()
| fz_pixmap * fz_convert_pixmap | ( | fz_context * | ctx, |
| const fz_pixmap * | pix, | ||
| fz_colorspace * | cs_des, | ||
| fz_colorspace * | prf, | ||
| fz_default_colorspaces * | default_cs, | ||
| fz_color_params | color_params, | ||
| int | keep_alpha ) |
Convert an existing pixmap to a desired colorspace. Other properties of the pixmap, such as resolution and position are copied to the converted pixmap.
pix: The pixmap to convert.
default_cs: If NULL pix->colorspace is used. It is possible that the data may need to be interpreted as one of the color spaces in default_cs.
cs_des: Desired colorspace, may be NULL to denote alpha-only.
prf: Proofing color space through which we need to convert.
color_params: Parameters that may be used in conversion (e.g. ri).
keep_alpha: If 0 any alpha component is removed, otherwise alpha is kept if present in the pixmap.
◆ fz_copy_pixmap_rect()
| void fz_copy_pixmap_rect | ( | fz_context * | ctx, |
| fz_pixmap * | dest, | ||
| fz_pixmap * | src, | ||
| fz_irect | r, | ||
| const fz_default_colorspaces * | default_cs ) |
◆ fz_decode_tile()
| void fz_decode_tile | ( | fz_context * | ctx, |
| fz_pixmap * | pix, | ||
| const float * | decode ) |
◆ fz_detect_document()
| int fz_detect_document | ( | fz_context * | ctx, |
| fz_quad * | points, | ||
| fz_pixmap * | src ) |
◆ fz_drop_pixmap()
| void fz_drop_pixmap | ( | fz_context * | ctx, |
| fz_pixmap * | pix ) |
Decrement the reference count for the pixmap. When the reference count hits 0, the pixmap is freed.
Never throws exceptions.
◆ fz_fill_pixmap_with_color()
| void fz_fill_pixmap_with_color | ( | fz_context * | ctx, |
| fz_pixmap * | pix, | ||
| fz_colorspace * | colorspace, | ||
| float * | color, | ||
| fz_color_params | color_params ) |
Fill pixmap with solid color.
◆ fz_gamma_pixmap()
| void fz_gamma_pixmap | ( | fz_context * | ctx, |
| fz_pixmap * | pix, | ||
| float | gamma ) |
Apply gamma correction to a pixmap. All components of all pixels are modified (except alpha, which is unchanged).
gamma: The gamma value to apply; 1.0 for no change.
◆ fz_invert_pixmap()
| void fz_invert_pixmap | ( | fz_context * | ctx, |
| fz_pixmap * | pix ) |
Invert all the pixels in a pixmap. All components (process and spots) of all pixels are inverted (except alpha, which is unchanged).
◆ fz_invert_pixmap_alpha()
| void fz_invert_pixmap_alpha | ( | fz_context * | ctx, |
| fz_pixmap * | pix ) |
Invert the alpha of all the pixels in a pixmap.
◆ fz_invert_pixmap_luminance()
| void fz_invert_pixmap_luminance | ( | fz_context * | ctx, |
| fz_pixmap * | pix ) |
Transform the pixels in a pixmap so that luminance of each pixel is inverted, and the chrominance remains unchanged (as much as accuracy allows).
All components of all pixels are inverted (except alpha, which is unchanged). Only supports Grey and RGB bitmaps.
◆ fz_invert_pixmap_raw()
| void fz_invert_pixmap_raw | ( | fz_context * | ctx, |
| fz_pixmap * | pix ) |
Invert all the pixels in a non-premultiplied pixmap in a very naive manner.
◆ fz_invert_pixmap_rect()
| void fz_invert_pixmap_rect | ( | fz_context * | ctx, |
| fz_pixmap * | image, | ||
| fz_irect | rect ) |
Invert all the pixels in a given rectangle of a (premultiplied) pixmap. All components of all pixels in the rectangle are inverted (except alpha, which is unchanged).
◆ fz_is_pixmap_monochrome()
| int fz_is_pixmap_monochrome | ( | fz_context * | ctx, |
| fz_pixmap * | pixmap ) |
Check if the pixmap is a 1-channel image containing samples with only values 0 and 255
◆ fz_keep_pixmap()
| fz_pixmap * fz_keep_pixmap | ( | fz_context * | ctx, |
| fz_pixmap * | pix ) |
Increment the reference count for the pixmap. The same pointer is returned.
Never throws exceptions.
◆ fz_md5_pixmap()
| void fz_md5_pixmap | ( | fz_context * | ctx, |
| fz_pixmap * | pixmap, | ||
| unsigned char | digest[16] ) |
◆ fz_new_pixmap()
| fz_pixmap * fz_new_pixmap | ( | fz_context * | ctx, |
| fz_colorspace * | cs, | ||
| int | w, | ||
| int | h, | ||
| fz_separations * | seps, | ||
| int | alpha ) |
Create a new pixmap, with its origin at (0,0)
cs: The colorspace to use for the pixmap, or NULL for an alpha plane/mask.
w: The width of the pixmap (in pixels)
h: The height of the pixmap (in pixels)
seps: Details of separations.
alpha: 0 for no alpha, 1 for alpha.
Returns a pointer to the new pixmap. Throws exception on failure to allocate.
◆ fz_new_pixmap_from_alpha_channel()
| fz_pixmap * fz_new_pixmap_from_alpha_channel | ( | fz_context * | ctx, |
| fz_pixmap * | src ) |
◆ fz_new_pixmap_from_color_and_mask()
| fz_pixmap * fz_new_pixmap_from_color_and_mask | ( | fz_context * | ctx, |
| fz_pixmap * | color, | ||
| fz_pixmap * | mask ) |
◆ fz_new_pixmap_from_pixmap()
| fz_pixmap * fz_new_pixmap_from_pixmap | ( | fz_context * | ctx, |
| fz_pixmap * | pixmap, | ||
| const fz_irect * | rect ) |
Create a new pixmap that represents a subarea of the specified pixmap. A reference is taken to this pixmap that will be dropped on destruction.
The supplied rectangle must be wholly contained within the original pixmap.
Returns a pointer to the new pixmap. Throws exception on failure to allocate.
◆ fz_new_pixmap_with_bbox()
| fz_pixmap * fz_new_pixmap_with_bbox | ( | fz_context * | ctx, |
| fz_colorspace * | colorspace, | ||
| fz_irect | bbox, | ||
| fz_separations * | seps, | ||
| int | alpha ) |
Create a pixmap of a given size, location and pixel format.
The bounding box specifies the size of the created pixmap and where it will be located. The colorspace determines the number of components per pixel. Alpha is always present. Pixmaps are reference counted, so drop references using fz_drop_pixmap.
colorspace: Colorspace format used for the created pixmap. The pixmap will keep a reference to the colorspace.
bbox: Bounding box specifying location/size of created pixmap.
seps: Details of separations.
alpha: 0 for no alpha, 1 for alpha.
Returns a pointer to the new pixmap. Throws exception on failure to allocate.
◆ fz_new_pixmap_with_bbox_and_data()
| fz_pixmap * fz_new_pixmap_with_bbox_and_data | ( | fz_context * | ctx, |
| fz_colorspace * | colorspace, | ||
| fz_irect | rect, | ||
| fz_separations * | seps, | ||
| int | alpha, | ||
| unsigned char * | samples ) |
Create a pixmap of a given size, location and pixel format, using the supplied data block.
The bounding box specifies the size of the created pixmap and where it will be located. The colorspace determines the number of components per pixel. Alpha is always present. Pixmaps are reference counted, so drop references using fz_drop_pixmap.
colorspace: Colorspace format used for the created pixmap. The pixmap will keep a reference to the colorspace.
rect: Bounding box specifying location/size of created pixmap.
seps: Details of separations.
alpha: Number of alpha planes (0 or 1).
samples: The data block to keep the samples in.
Returns a pointer to the new pixmap. Throws exception on failure to allocate.
◆ fz_new_pixmap_with_data()
| fz_pixmap * fz_new_pixmap_with_data | ( | fz_context * | ctx, |
| fz_colorspace * | colorspace, | ||
| int | w, | ||
| int | h, | ||
| fz_separations * | seps, | ||
| int | alpha, | ||
| int | stride, | ||
| unsigned char * | samples ) |
Create a new pixmap, with its origin at (0,0) using the supplied data block.
cs: The colorspace to use for the pixmap, or NULL for an alpha plane/mask.
w: The width of the pixmap (in pixels)
h: The height of the pixmap (in pixels)
seps: Details of separations.
alpha: 0 for no alpha, 1 for alpha.
stride: The byte offset from the pixel data in a row to the pixel data in the next row.
samples: The data block to keep the samples in.
Returns a pointer to the new pixmap. Throws exception on failure to allocate.
◆ fz_pixmap_alpha()
| int fz_pixmap_alpha | ( | fz_context * | ctx, |
| const fz_pixmap * | pix ) |
Return the number of alpha planes in a pixmap.
Returns the number of alphas. Does not throw exceptions.
◆ fz_pixmap_bbox()
| fz_irect fz_pixmap_bbox | ( | fz_context * | ctx, |
| const fz_pixmap * | pix ) |
Return the bounding box for a pixmap.
◆ fz_pixmap_colorants()
| int fz_pixmap_colorants | ( | fz_context * | ctx, |
| const fz_pixmap * | pix ) |
Return the number of colorants in a pixmap.
Returns the number of colorants (components, less any spots and alpha).
◆ fz_pixmap_colorspace()
| fz_colorspace * fz_pixmap_colorspace | ( | fz_context * | ctx, |
| const fz_pixmap * | pix ) |
Return the colorspace of a pixmap
Returns colorspace.
◆ fz_pixmap_components()
| int fz_pixmap_components | ( | fz_context * | ctx, |
| const fz_pixmap * | pix ) |
Return the number of components in a pixmap.
Returns the number of components (including spots and alpha).
◆ fz_pixmap_height()
| int fz_pixmap_height | ( | fz_context * | ctx, |
| const fz_pixmap * | pix ) |
Return the height of the pixmap in pixels.
◆ fz_pixmap_samples()
| unsigned char * fz_pixmap_samples | ( | fz_context * | ctx, |
| const fz_pixmap * | pix ) |
Returns a pointer to the pixel data of a pixmap.
Returns the pointer.
◆ fz_pixmap_size()
| size_t fz_pixmap_size | ( | fz_context * | ctx, |
| fz_pixmap * | pix ) |
Return sizeof fz_pixmap plus size of data, in bytes.
◆ fz_pixmap_spots()
| int fz_pixmap_spots | ( | fz_context * | ctx, |
| const fz_pixmap * | pix ) |
Return the number of spots in a pixmap.
Returns the number of spots (components, less colorants and alpha). Does not throw exceptions.
◆ fz_pixmap_stride()
| int fz_pixmap_stride | ( | fz_context * | ctx, |
| const fz_pixmap * | pix ) |
Return the number of bytes in a row in the pixmap.
◆ fz_pixmap_width()
| int fz_pixmap_width | ( | fz_context * | ctx, |
| const fz_pixmap * | pix ) |
Return the width of the pixmap in pixels.
◆ fz_pixmap_x()
| int fz_pixmap_x | ( | fz_context * | ctx, |
| const fz_pixmap * | pix ) |
Return the x value of the pixmap in pixels.
◆ fz_pixmap_y()
| int fz_pixmap_y | ( | fz_context * | ctx, |
| const fz_pixmap * | pix ) |
Return the y value of the pixmap in pixels.
◆ fz_scale_pixmap()
| fz_pixmap * fz_scale_pixmap | ( | fz_context * | ctx, |
| fz_pixmap * | src, | ||
| float | x, | ||
| float | y, | ||
| float | w, | ||
| float | h, | ||
| const fz_irect * | clip ) |
◆ fz_set_pixmap_resolution()
| void fz_set_pixmap_resolution | ( | fz_context * | ctx, |
| fz_pixmap * | pix, | ||
| int | xres, | ||
| int | yres ) |
Set the pixels per inch resolution of the pixmap.
◆ fz_subsample_pixmap()
| void fz_subsample_pixmap | ( | fz_context * | ctx, |
| fz_pixmap * | tile, | ||
| int | factor ) |
◆ fz_tint_pixmap()
| void fz_tint_pixmap | ( | fz_context * | ctx, |
| fz_pixmap * | pix, | ||
| int | black, | ||
| int | white ) |
Tint all the pixels in an RGB, BGR, or Gray pixmap.
black: Map black to this hexadecimal RGB color.
white: Map white to this hexadecimal RGB color.
◆ fz_unpack_stream()
| fz_stream * fz_unpack_stream | ( | fz_context * | ctx, |
| fz_stream * | src, | ||
| int | depth, | ||
| int | w, | ||
| int | h, | ||
| int | n, | ||
| int | indexed, | ||
| int | pad, | ||
| int | skip ) |
◆ fz_warp_pixmap()
| fz_pixmap * fz_warp_pixmap | ( | fz_context * | ctx, |
| fz_pixmap * | src, | ||
| fz_quad | points, | ||
| int | width, | ||
| int | height ) |
