shade.h File Reference

#include "mupdf/fitz/system.h"
#include "mupdf/fitz/context.h"
#include "mupdf/fitz/geometry.h"
#include "mupdf/fitz/store.h"
#include "mupdf/fitz/pixmap.h"
#include "mupdf/fitz/compressed-buffer.h"

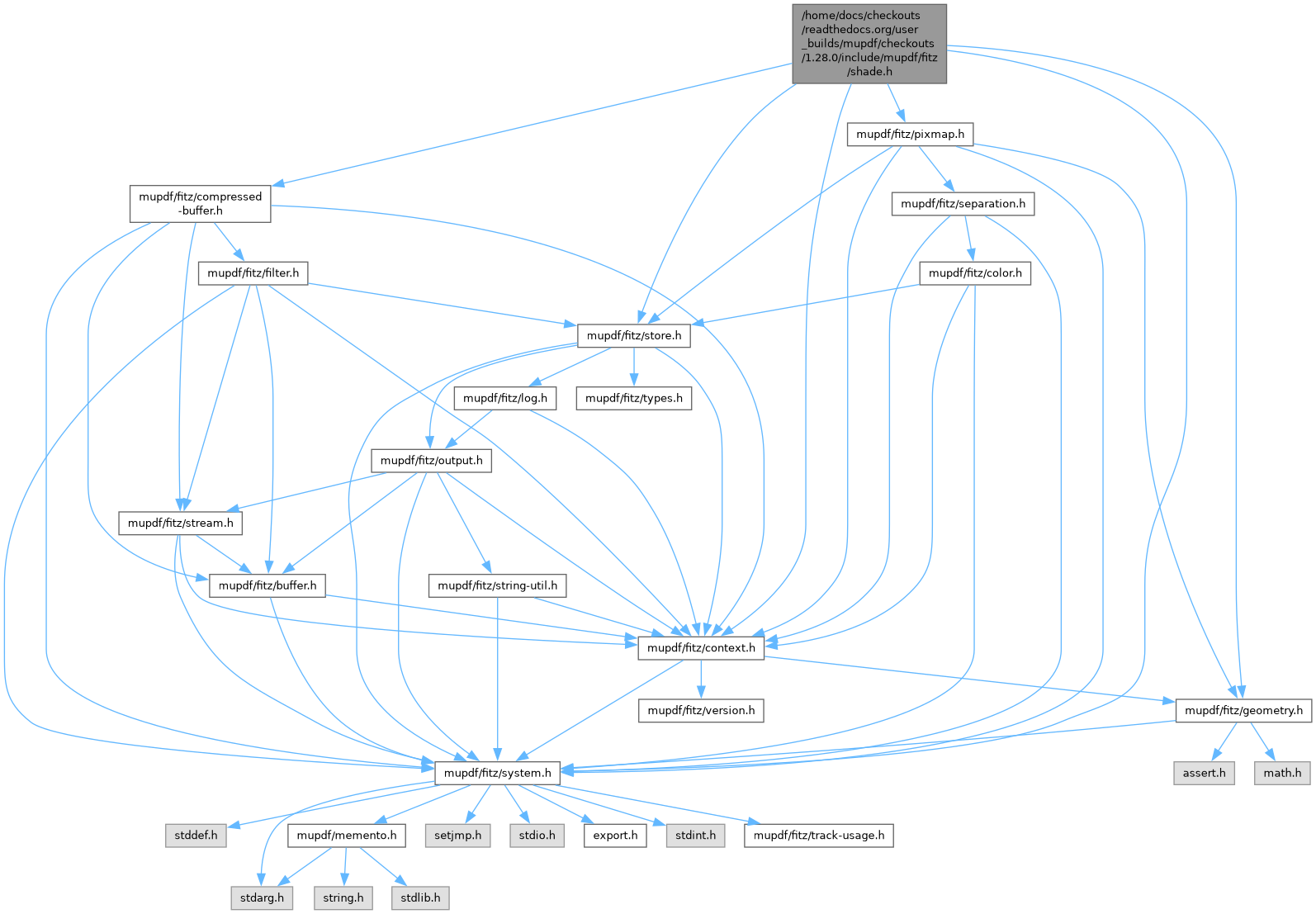

Include dependency graph for shade.h:

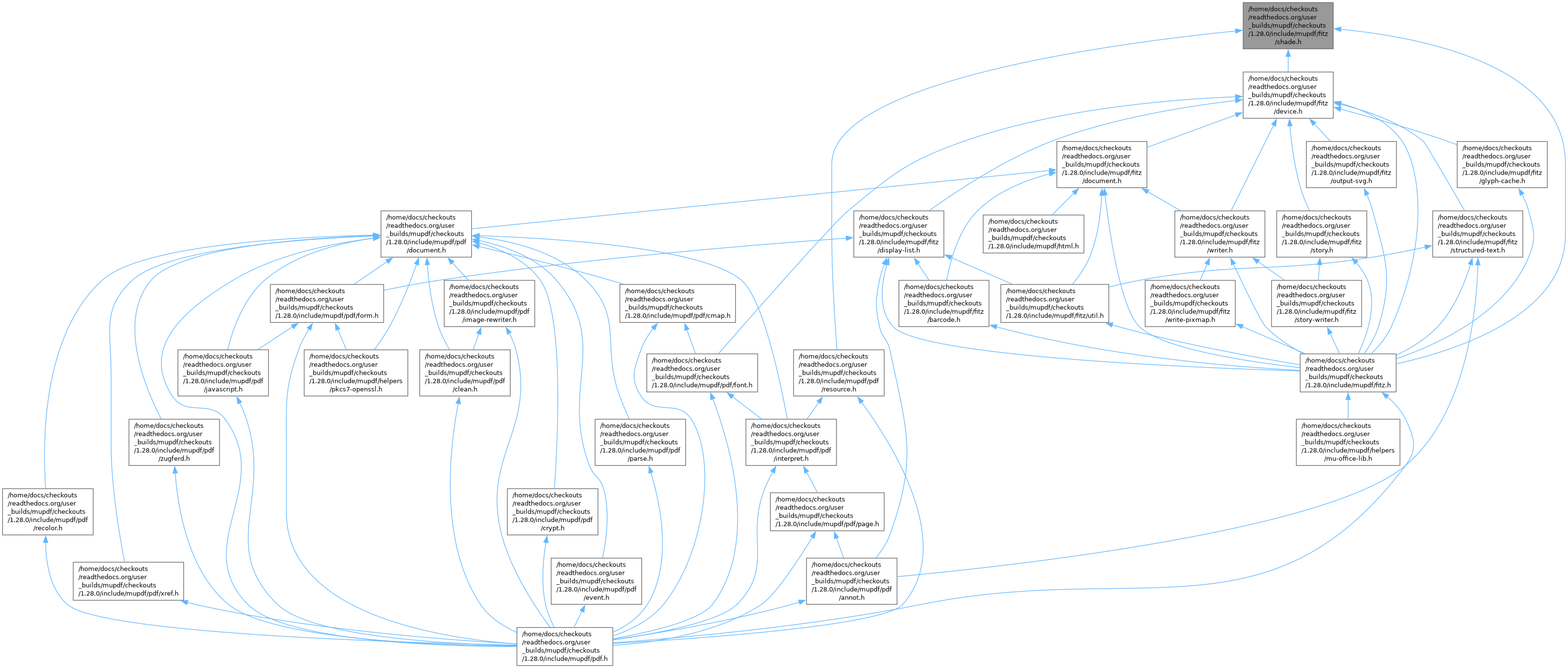

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	fz_shade
struct	fz_vertex

Typedefs
typedef struct fz_shade_color_cache	fz_shade_color_cache
typedef void	fz_shade_prepare_fn(fz_context *ctx, void *arg, fz_vertex *v, const float *c)
typedef void	fz_shade_process_fn(fz_context *ctx, void *arg, fz_vertex *av, fz_vertex *bv, fz_vertex *cv)

Enumerations
enum	{   FZ_FUNCTION_BASED = 1 , FZ_LINEAR = 2 , FZ_RADIAL = 3 , FZ_MESH_TYPE4 = 4 ,   FZ_MESH_TYPE5 = 5 , FZ_MESH_TYPE6 = 6 , FZ_MESH_TYPE7 = 7 }

Functions
fz_shade *	fz_keep_shade (fz_context *ctx, fz_shade *shade)
void	fz_drop_shade (fz_context *ctx, fz_shade *shade)
fz_rect	fz_bound_shade (fz_context *ctx, fz_shade *shade, fz_matrix ctm)
void	fz_drop_shade_color_cache (fz_context *ctx, fz_shade_color_cache *cache)
void	fz_paint_shade (fz_context *ctx, fz_shade *shade, fz_colorspace *override_cs, fz_matrix ctm, fz_pixmap *dest, fz_color_params color_params, fz_irect bbox, const fz_overprint *eop, fz_shade_color_cache **cache)
void	fz_process_shade (fz_context *ctx, fz_shade *shade, fz_matrix ctm, fz_rect scissor, fz_shade_prepare_fn *prepare, fz_shade_process_fn *process, void *process_arg)
void	fz_drop_shade_imp (fz_context *ctx, fz_storable *shade)

Typedef Documentation

fz_shade_color_cache

typedef struct fz_shade_color_cache fz_shade_color_cache

fz_shade_prepare_fn

typedef void fz_shade_prepare_fn(fz_context *ctx, void *arg, fz_vertex *v, const float *c)

Callback function type for use with fz_process_shade.

arg: Opaque pointer from fz_process_shade caller.

v: Pointer to a fz_vertex structure to populate.

c: Pointer to an array of floats used to populate v.

fz_shade_process_fn

typedef void fz_shade_process_fn(fz_context *ctx, void *arg, fz_vertex *av, fz_vertex *bv, fz_vertex *cv)

Callback function type for use with fz_process_shade.

arg: Opaque pointer from fz_process_shade caller.

av, bv, cv: Pointers to a fz_vertex structure describing the corner locations and colors of a triangle to be filled.

Enumeration Type Documentation

anonymous enum

anonymous enum

The shading code uses gouraud shaded triangle meshes.

Enumerator
FZ_FUNCTION_BASED
FZ_LINEAR
FZ_RADIAL
FZ_MESH_TYPE4
FZ_MESH_TYPE5
FZ_MESH_TYPE6
FZ_MESH_TYPE7

Function Documentation

fz_bound_shade()

fz_rect fz_bound_shade	(	fz_context *	ctx,
		fz_shade *	shade,
		fz_matrix	ctm )

Bound a given shading.

shade: The shade to bound.

ctm: The transform to apply to the shade before bounding.

r: Pointer to storage to put the bounds in.

Returns r, updated to contain the bounds for the shading.

fz_drop_shade()

void fz_drop_shade	(	fz_context *	ctx,
		fz_shade *	shade )

Decrement the reference count for the shade structure. When the reference count hits zero, the structure is freed.

Never throws exceptions.

fz_drop_shade_color_cache()

void fz_drop_shade_color_cache	(	fz_context *	ctx,
		fz_shade_color_cache *	cache )

fz_drop_shade_imp()

void fz_drop_shade_imp	(	fz_context *	ctx,
		fz_storable *	shade )

Internal function to destroy a shade. Only exposed for use with the fz_store.

shade: The reference to destroy.

fz_keep_shade()

fz_shade * fz_keep_shade	(	fz_context *	ctx,
		fz_shade *	shade )

Increment the reference count for the shade structure. The same pointer is returned.

Never throws exceptions.

fz_paint_shade()

void fz_paint_shade	(	fz_context *	ctx,
		fz_shade *	shade,
		fz_colorspace *	override_cs,
		fz_matrix	ctm,
		fz_pixmap *	dest,
		fz_color_params	color_params,
		fz_irect	bbox,
		const fz_overprint *	eop,
		fz_shade_color_cache **	cache )

Render a shade to a given pixmap.

shade: The shade to paint.

override_cs: NULL, or colorspace to override the shades inbuilt colorspace.

ctm: The transform to apply.

dest: The pixmap to render into.

color_params: The color rendering settings

bbox: Pointer to a bounding box to limit the rendering of the shade.

eop: NULL, or pointer to overprint bitmap.

cache: *cache is used to cache color information. If *cache is NULL it is set to point to a new fz_shade_color_cache. If cache is NULL it is ignored.

fz_process_shade()

void fz_process_shade	(	fz_context *	ctx,
		fz_shade *	shade,
		fz_matrix	ctm,
		fz_rect	scissor,
		fz_shade_prepare_fn *	prepare,
		fz_shade_process_fn *	process,
		void *	process_arg )

Process a shade, using supplied callback functions. This decomposes the shading to a mesh (even ones that are not natively meshes, such as linear or radial shadings), and processes triangles from those meshes.

shade: The shade to process.

ctm: The transform to use

prepare: Callback function to 'prepare' each vertex. This function is passed an array of floats, and populates a fz_vertex structure.

process: This function is passed 3 pointers to vertex structures, and actually performs the processing (typically filling the area between the vertices).

process_arg: An opaque argument passed through from caller to callback functions.
